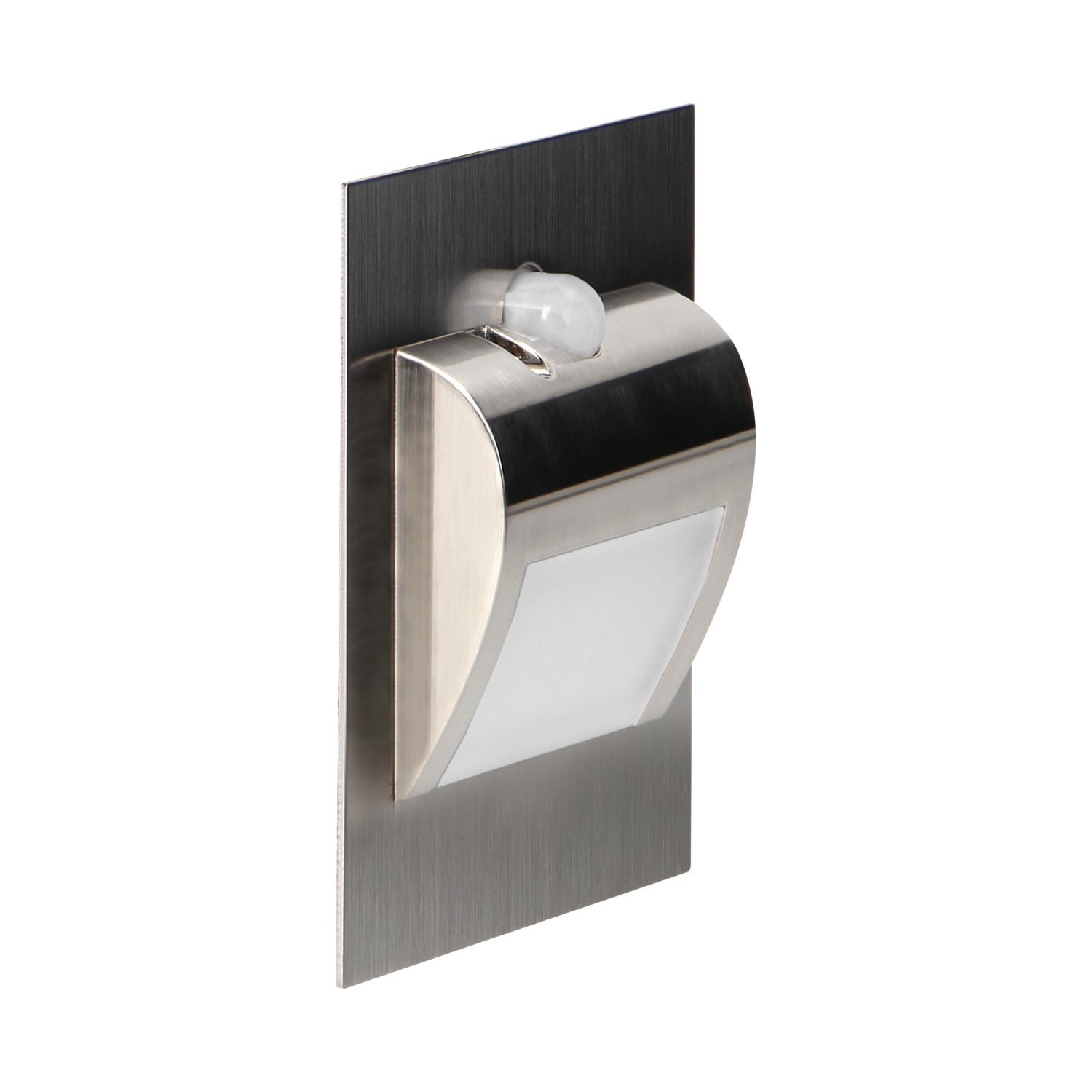

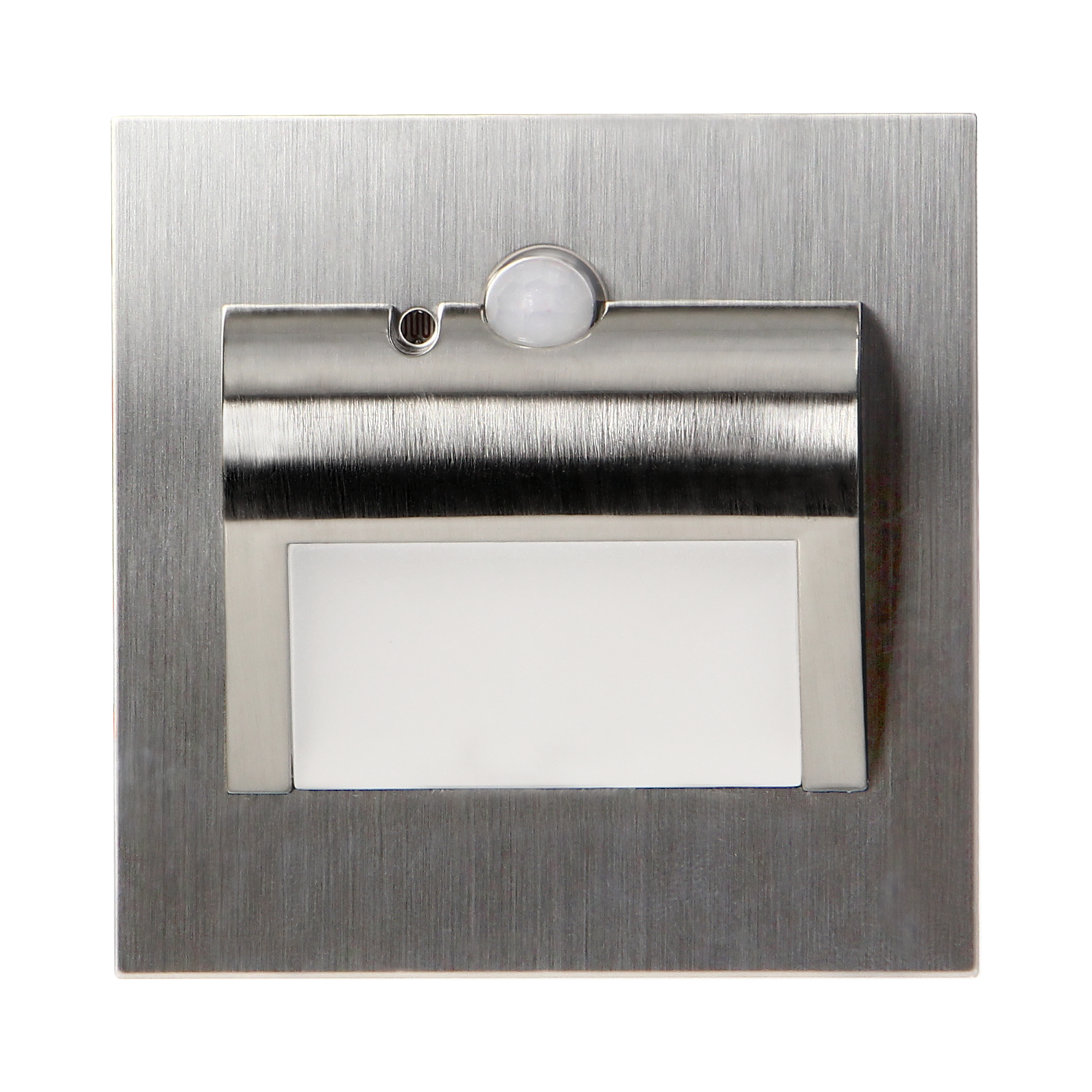

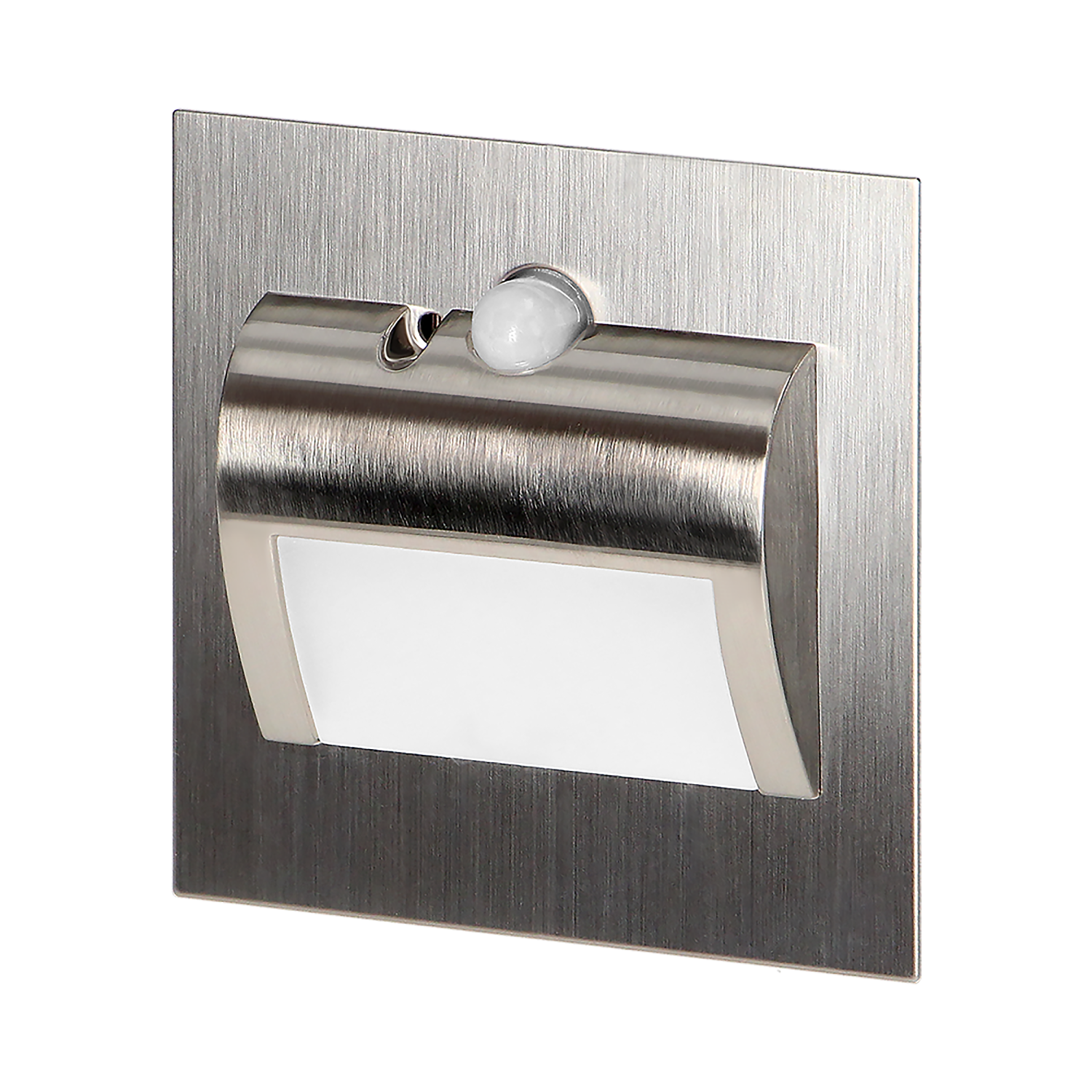

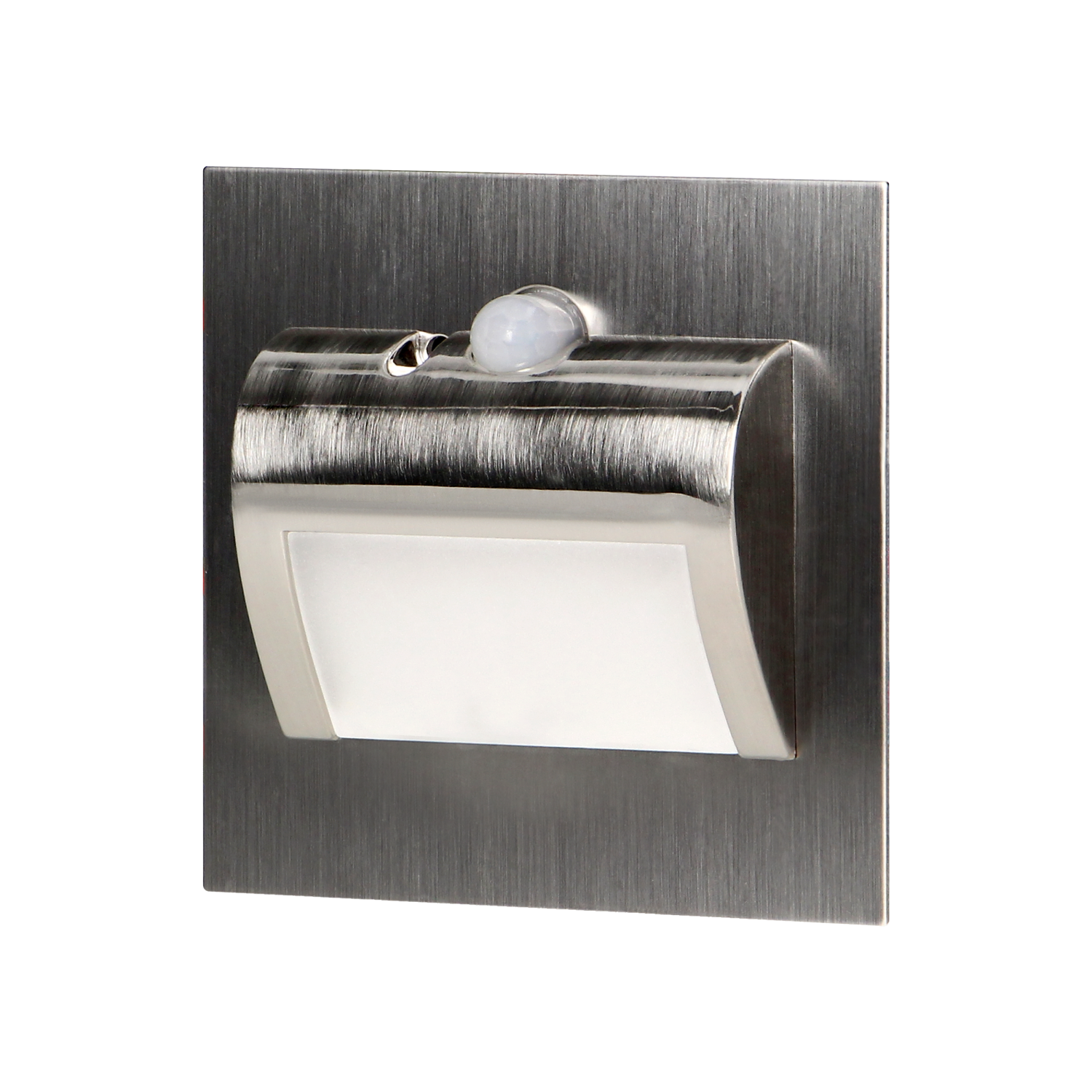

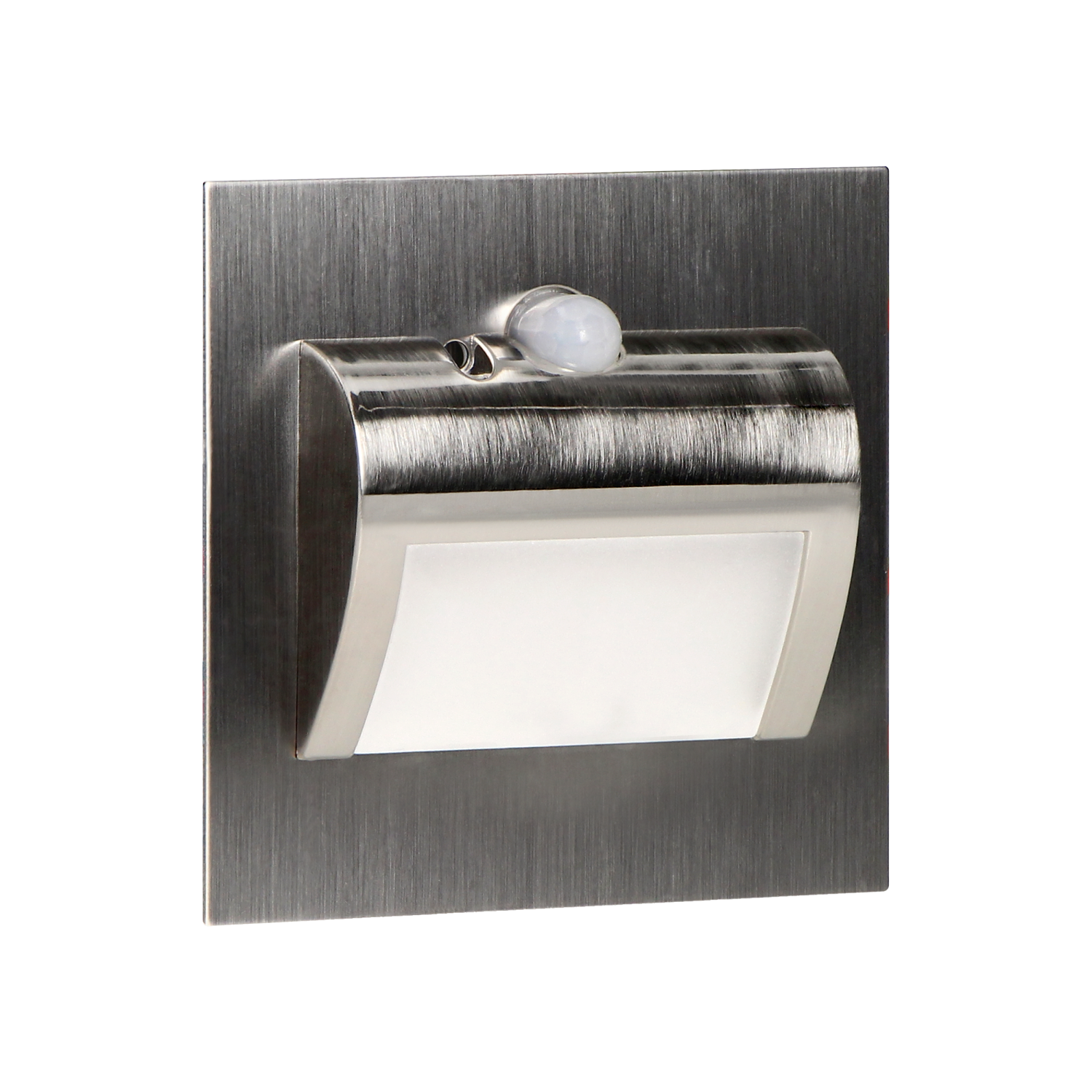

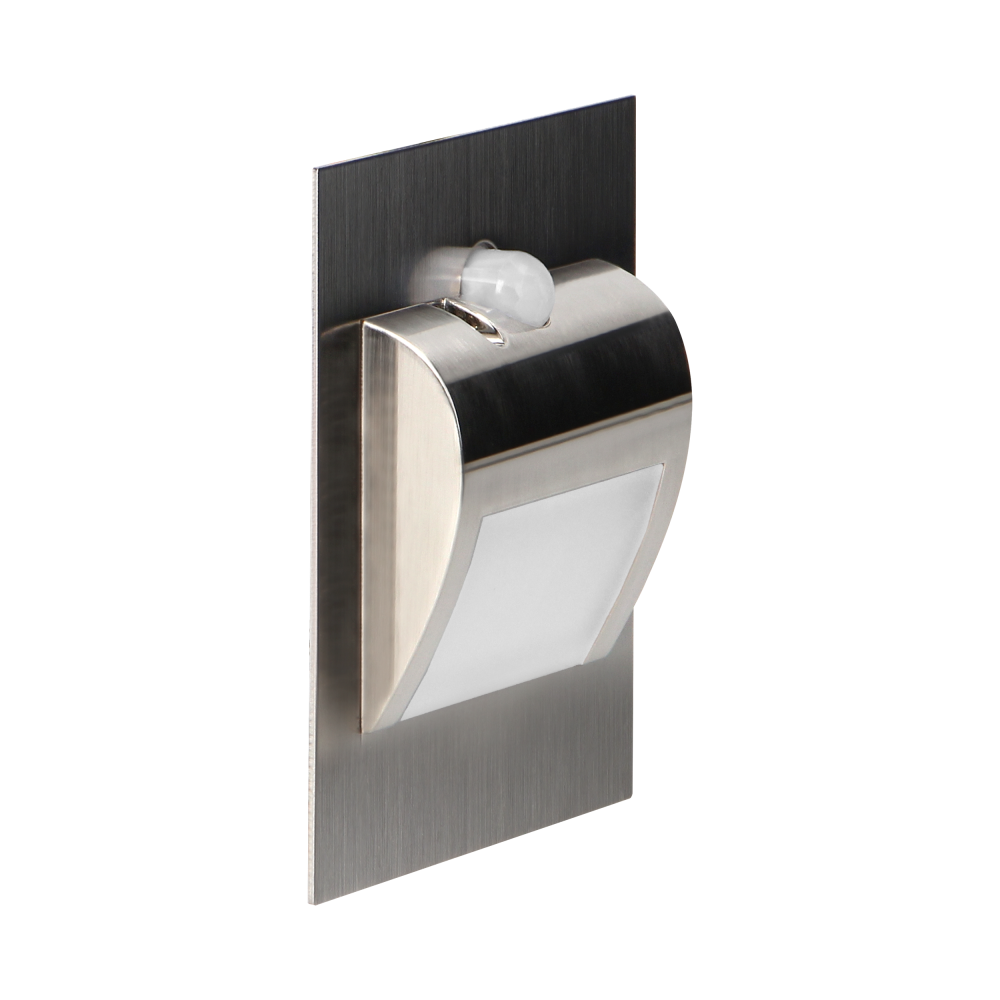

DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor

AD-OS-6164LR6/N
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor
DRACO LED NEW 1.5W, recessed step light, 12VDC, 30lm, 6000K, satin, motion and twilight sensor

Description

DRACO LED NEW step light designed to provide decorative lighting for stairs, corridors, walls, facades or passageways inside rooms. The original design and high-quality finishing in stainless steel, combined with innovative LED technology, make the fixture suitable for both classic and modern interiors. In addition, this luminaire has been equipped with a PIR motion sensor and a twilight sensor, thanks to which (depending on the settings) the stair lighting will only turn on when it detects movement or when ambient light intensity drops below the set level. The lamp emits light the temperature of which is 6000K. Light in this color is cool and closer to daylight. It is worth installing in places where you need clear light that reflects colors well. Color - satin.

General information:
Nominal voltage [V]: 12
Lamp type: LED, niewymienne
Suitable for lamp power [W]: 1.5
Rated luminous flux according to IEC 62722-2-1 [lm]: 30
With light source: tak
Colour temperature [K]: 6000
Rated life time L70/B50 at 25 °C [h]: 20000
Colour rendering index CRI: 80-89
Colour of light: Zimna biel
Degree of protection (IP): IP20
Protection class: III
Suitable for wall mounting: tak
Suitable for built-in mounting: tak
Material housing: Stal
Colour housing: Satyna
Material cover: Tworzywo sztuczne matowe/satynowe
With movement sensor: tak
Sensor type: PIR
Detection range: 2-3 m
Adjustable daylight sensor : 0-25lux
Adjustable time setting : 3-45 sek.
: 50
Width [mm]: 75
Height/depth [mm]: 45
Length [mm]: 75
Built-in diameter [mm]: 60
Voltage type: DC

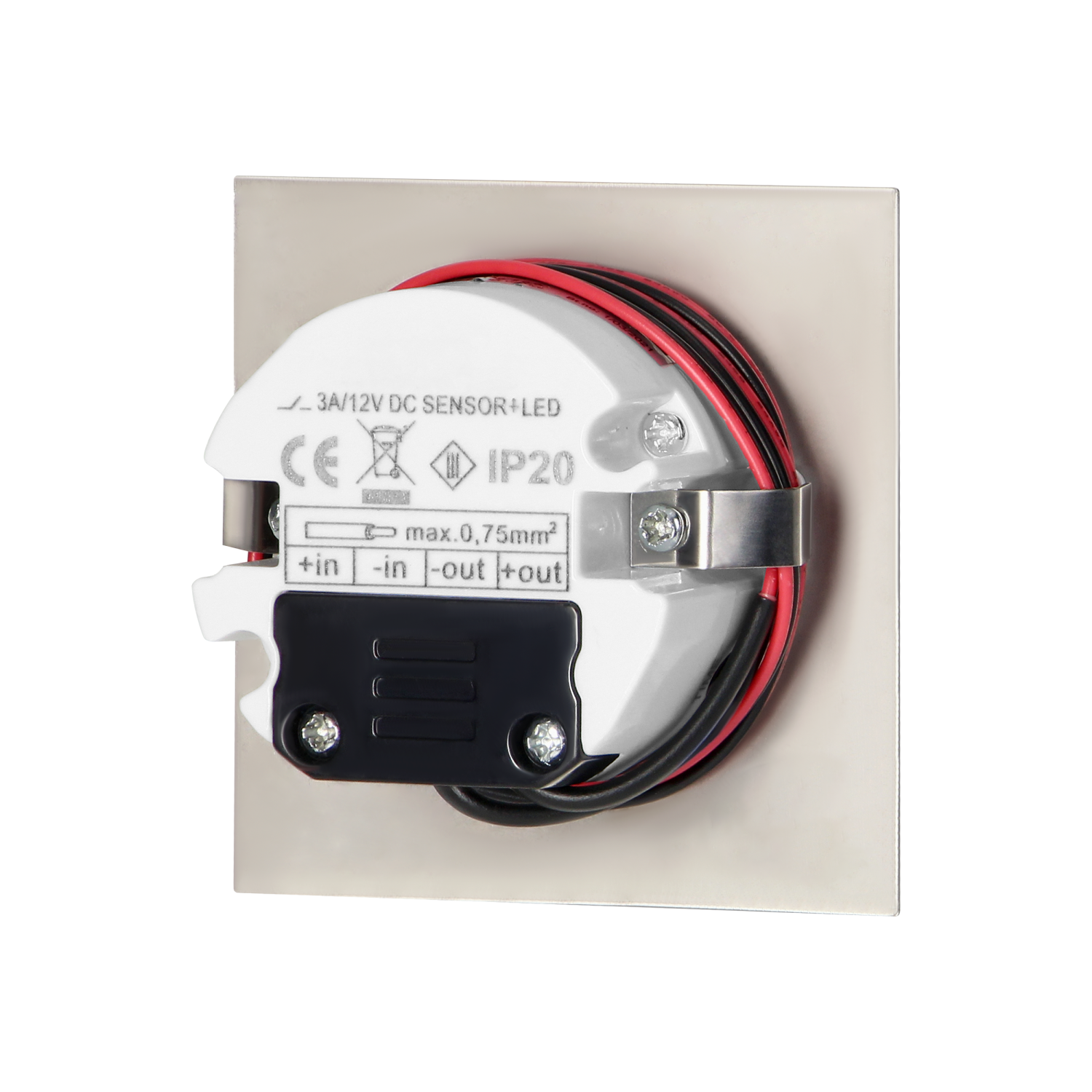

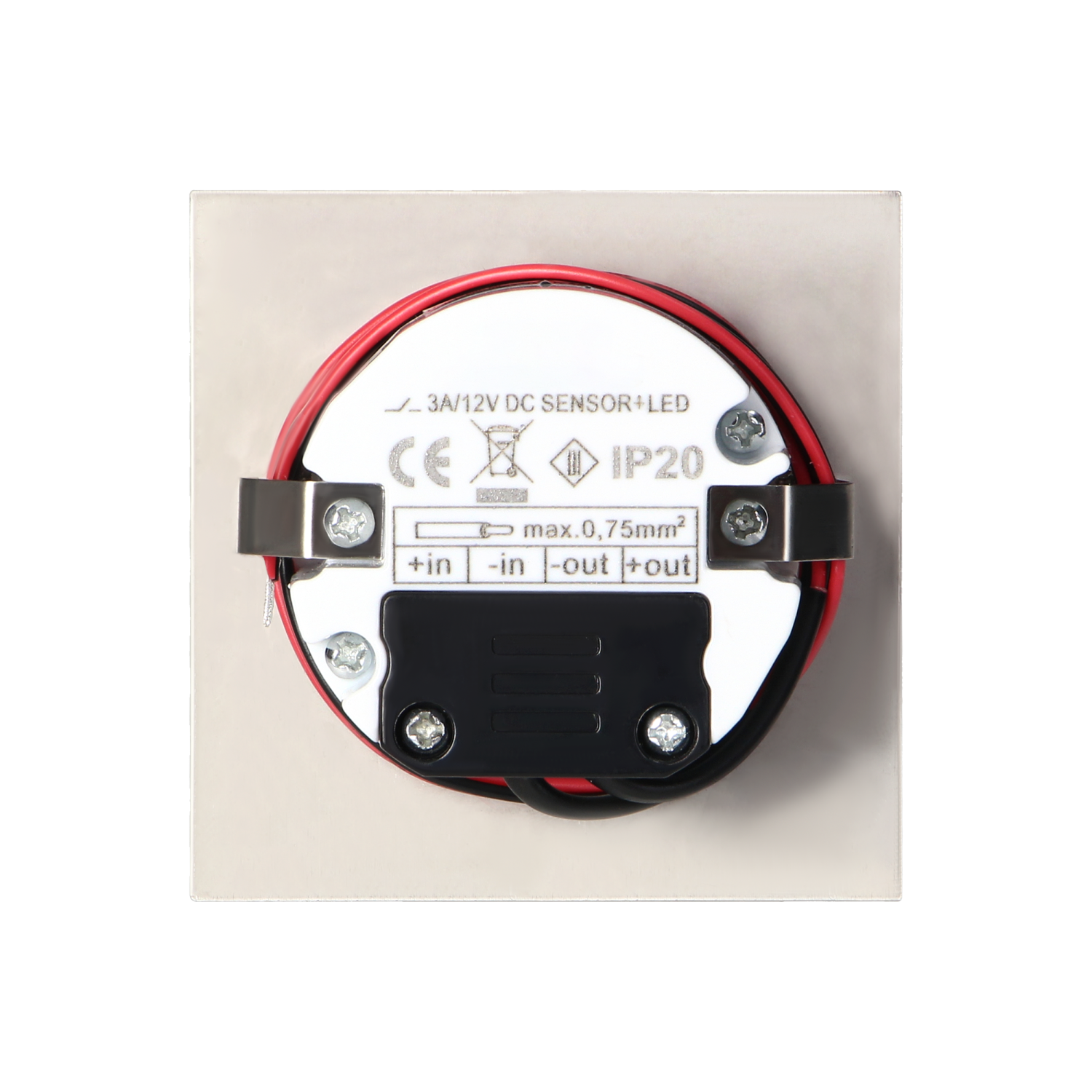

Type of wiring: Z okablowaniem przelotowym
Connection type: Końcówka niezarobiona
Other features: wersja PIR może zarządzać max. 8 oprawami podstawowymi

Files to download

File category File language File type File update date
Product data sheetPLpdf2024-07-17 10:10:21Download
Product data sheetENpdf2024-07-17 10:18:32Download
User manualPL, EN, DEpdf2024-03-14 10:39:51Download
