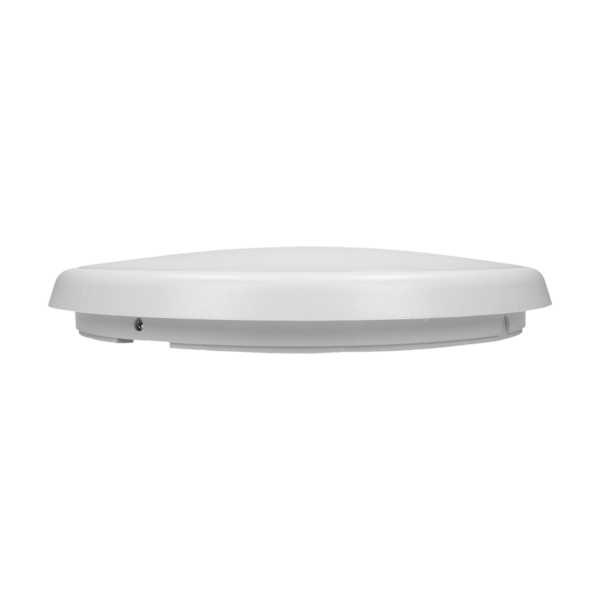

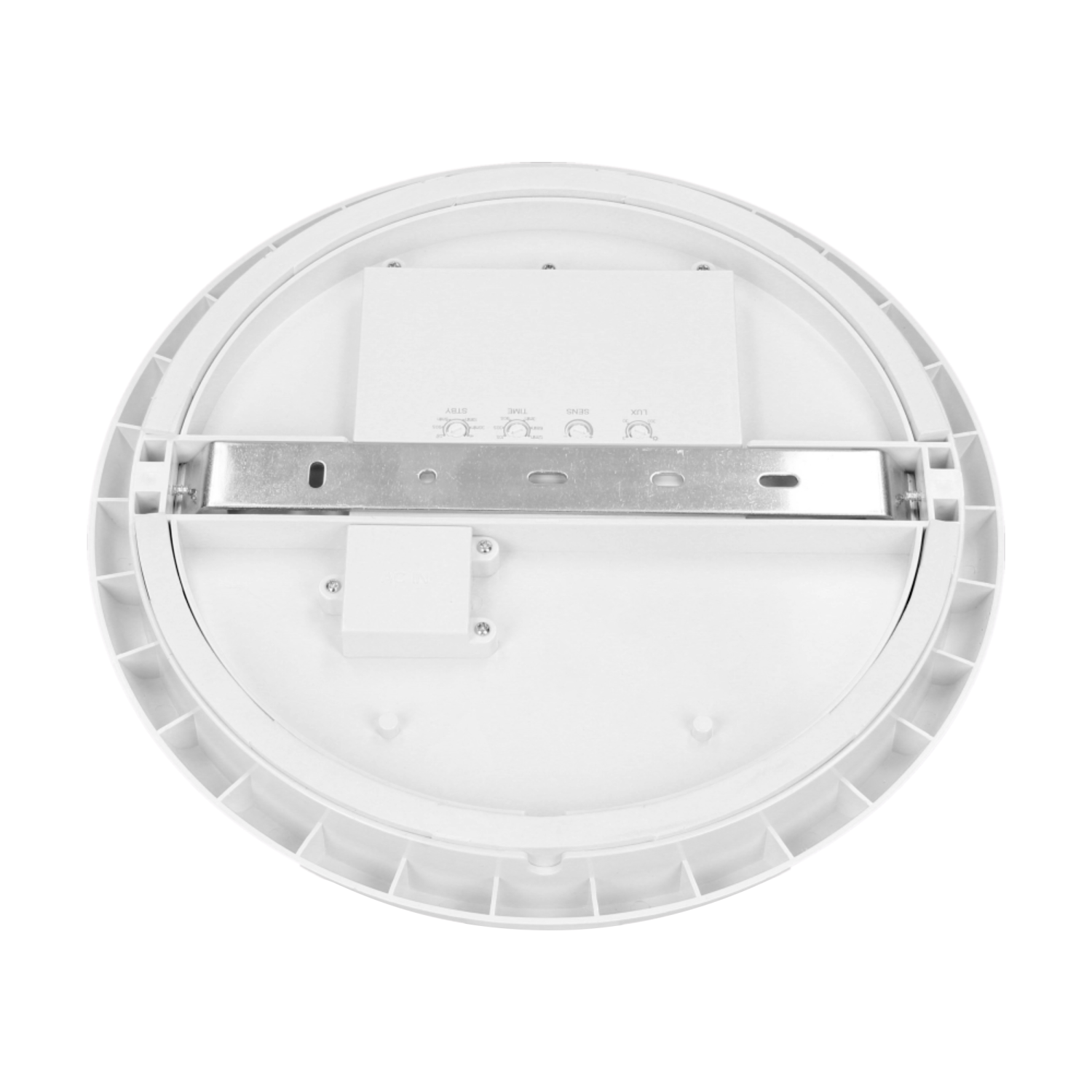

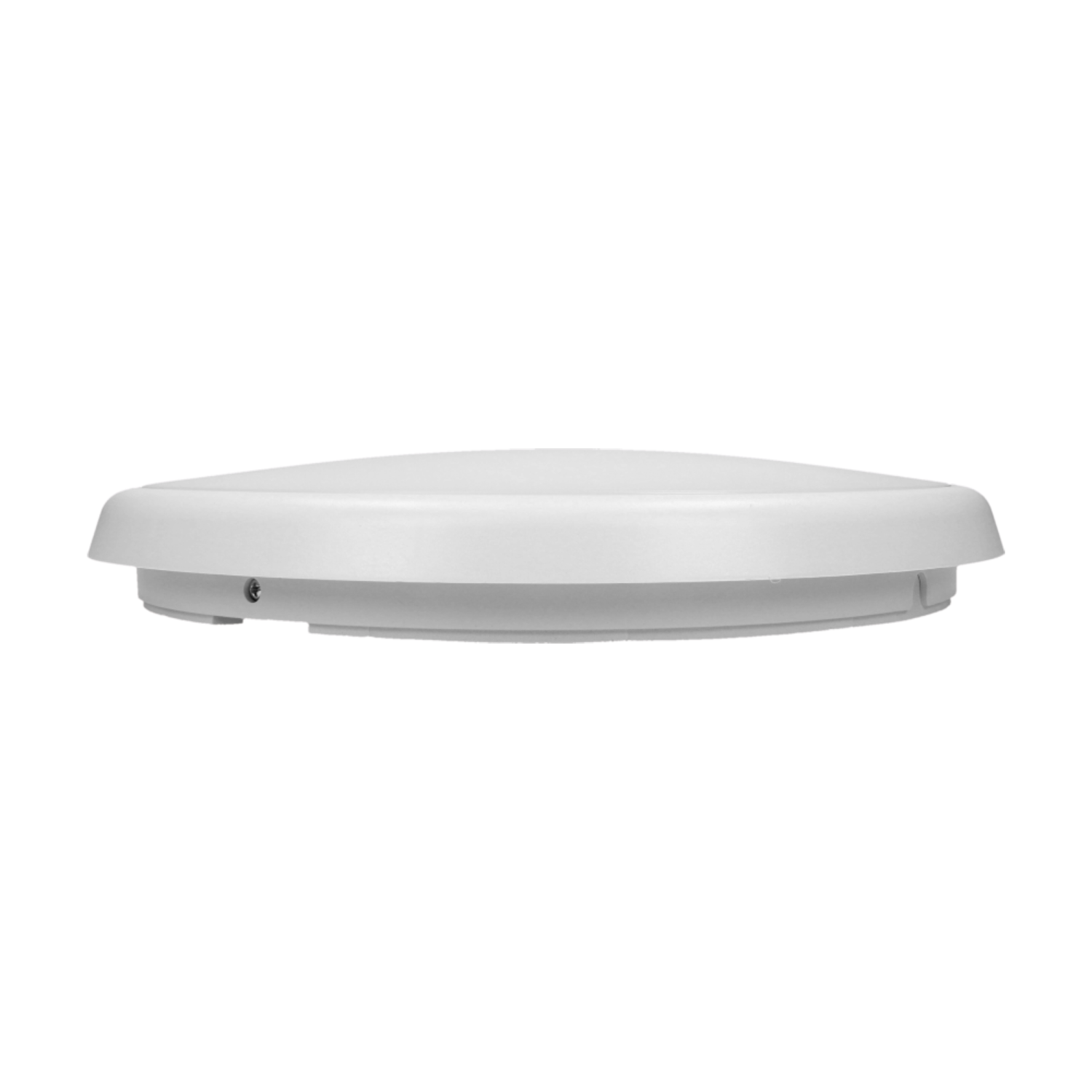

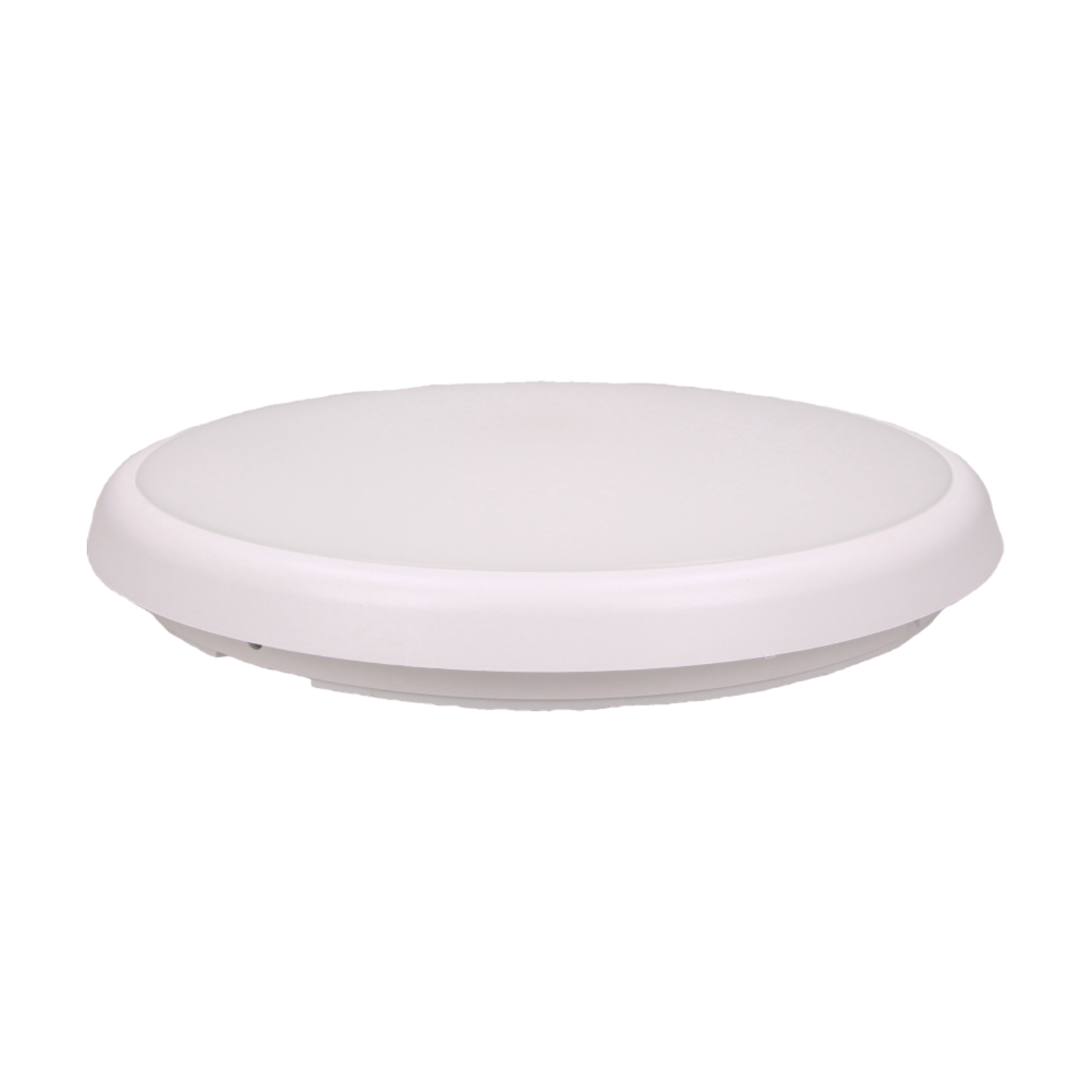

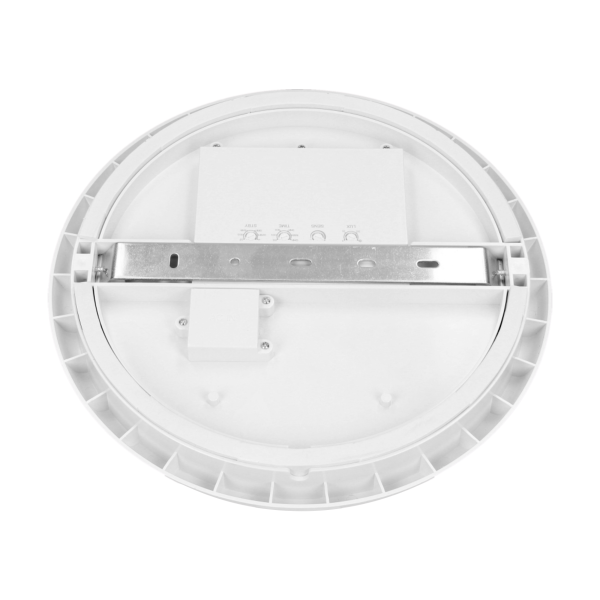

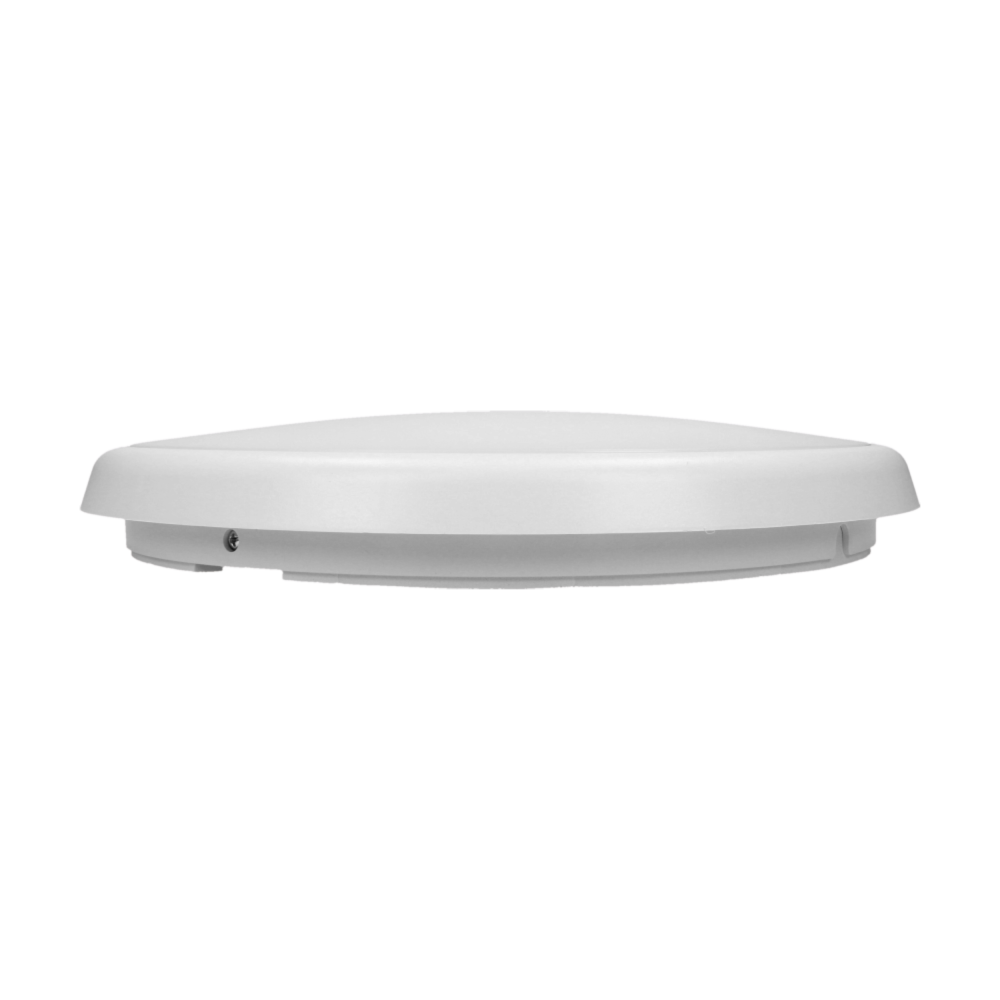

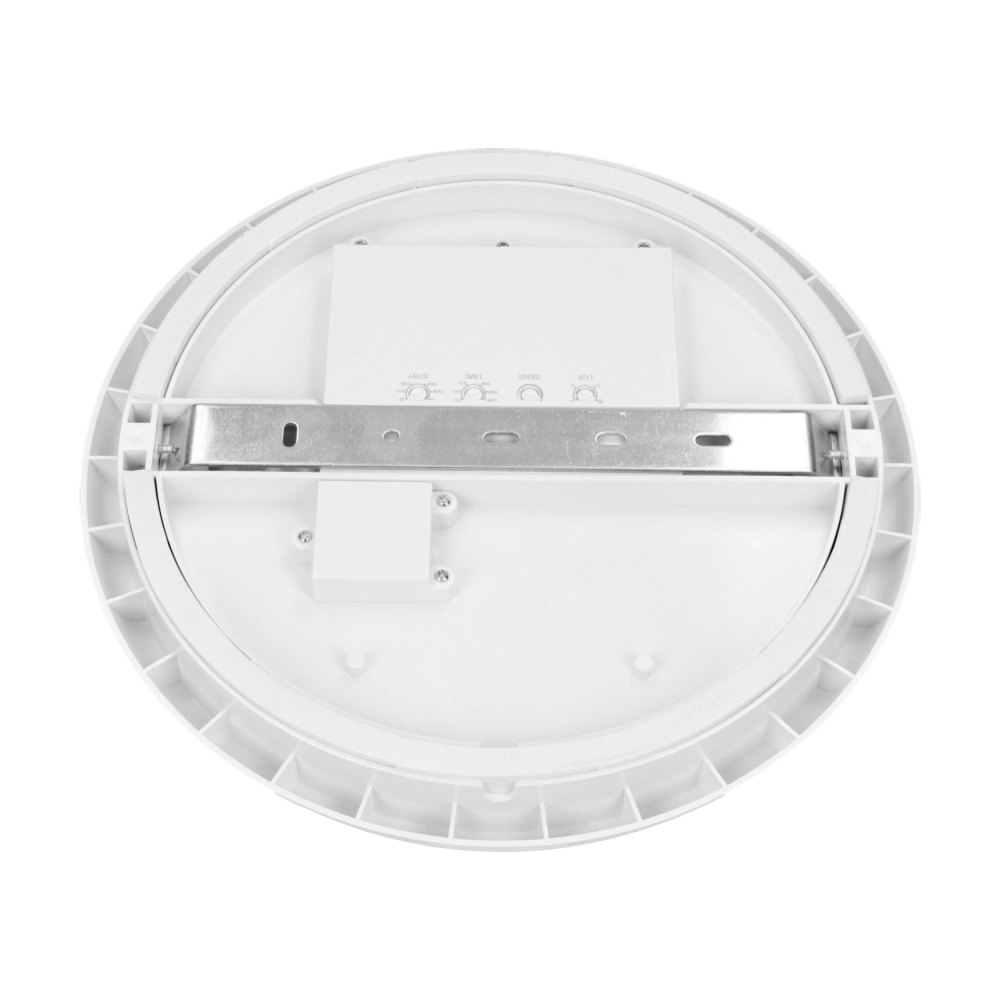

Integrated LED light source

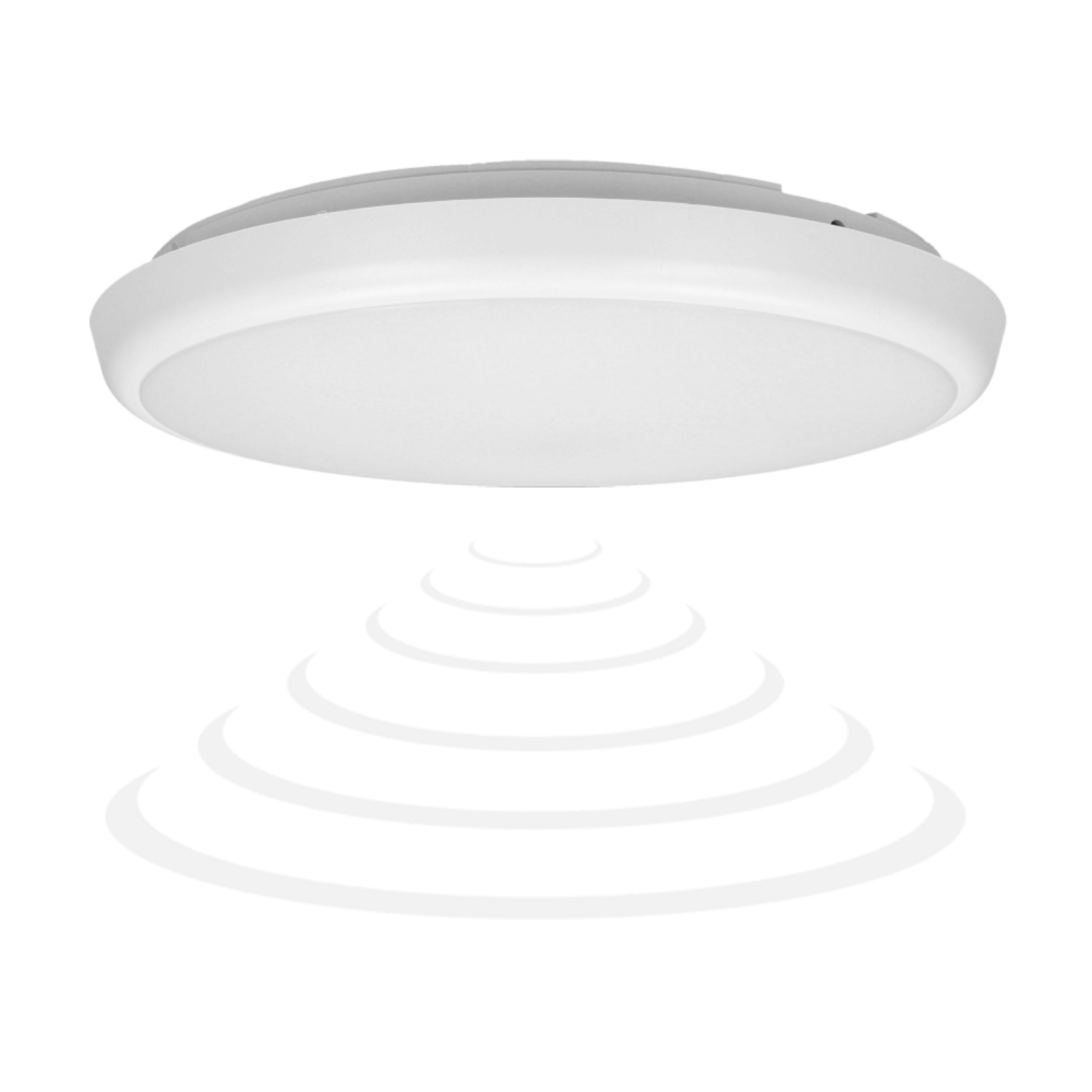

This ceiling lamp is designed to illuminate areas such as staircases, corridors, verandas, cellars, garages, utility rooms, cloakrooms, outdoor lighting, etc. It is equipped with modern SMD LEDs, which guarantee high energy efficiency and a long life of the ceiling lamp, as well as a microwave motion sensor. Depending on the settings, the twilight sensor only switches on the lighting when required. Thanks to four potentiometers, the sensor can be set as required, so that it operates exactly when people are present and moving in the area. In addition, it has a dimming function of up to 20% of its power at a selected time. Adjustable: light duration, light intensity sensitivity, motion detection range and dimming time. Material: milky, polycarbonate (PC) diffuser, unbreakable.
| General information: | |
|---|---|
| Nominal voltage: | 230 V |
| Lamp type: | LED, not replaceable |
| Suitable for lamp power: | 22 W |
| Rated luminous flux according to IEC 62722-2-1: | 2000 lm |
| With light source: | Yes |
| Colour temperature: | 4000 K |
| Max. power: | 22W |
| Beam angle: | 360° |
| Rated life time L70/B50 at 25 °C: | 50000 h |
| Colour rendering index CRI: | >80 |
| Standby power: | 22 W |
| Material housing: | Plastic |
| Energy efficiency class of the built-in lamp: | E |
| Degree of protection (IP): | IP65 |
| Colour of light: | Neutral |
| Impact strength: | IK10 |
| Protection class against electric shock: | II |
| Suitable for wall mounting: | Yes |
| Suitable for ceiling mounting: | Yes |
| Suitable for surface mounting: | Yes |
| Colour housing: | White |
| Material cover: | Matt / satin plastic |
| With movement sensor: | Yes |
| With light sensor: | Yes |
| Type of sensor: | Microwave |
| Detection range: | 4-16 m |
| Adjustable daylight sensor (LUX): | Yes |
| Daylight sensor adjustment range (LUX): | <3—2000lux |
| Adjustable time setting (TIME): | Yes |
| Lighting time adjustment range (TIME): | min: 10 sek. ± 3 sek.; max: 12 min. ± 1 min. |
| Adjustment of motion detection range (SENS): | Yes |
| Height/depth: | 40 mm |
