Integrated LED light source

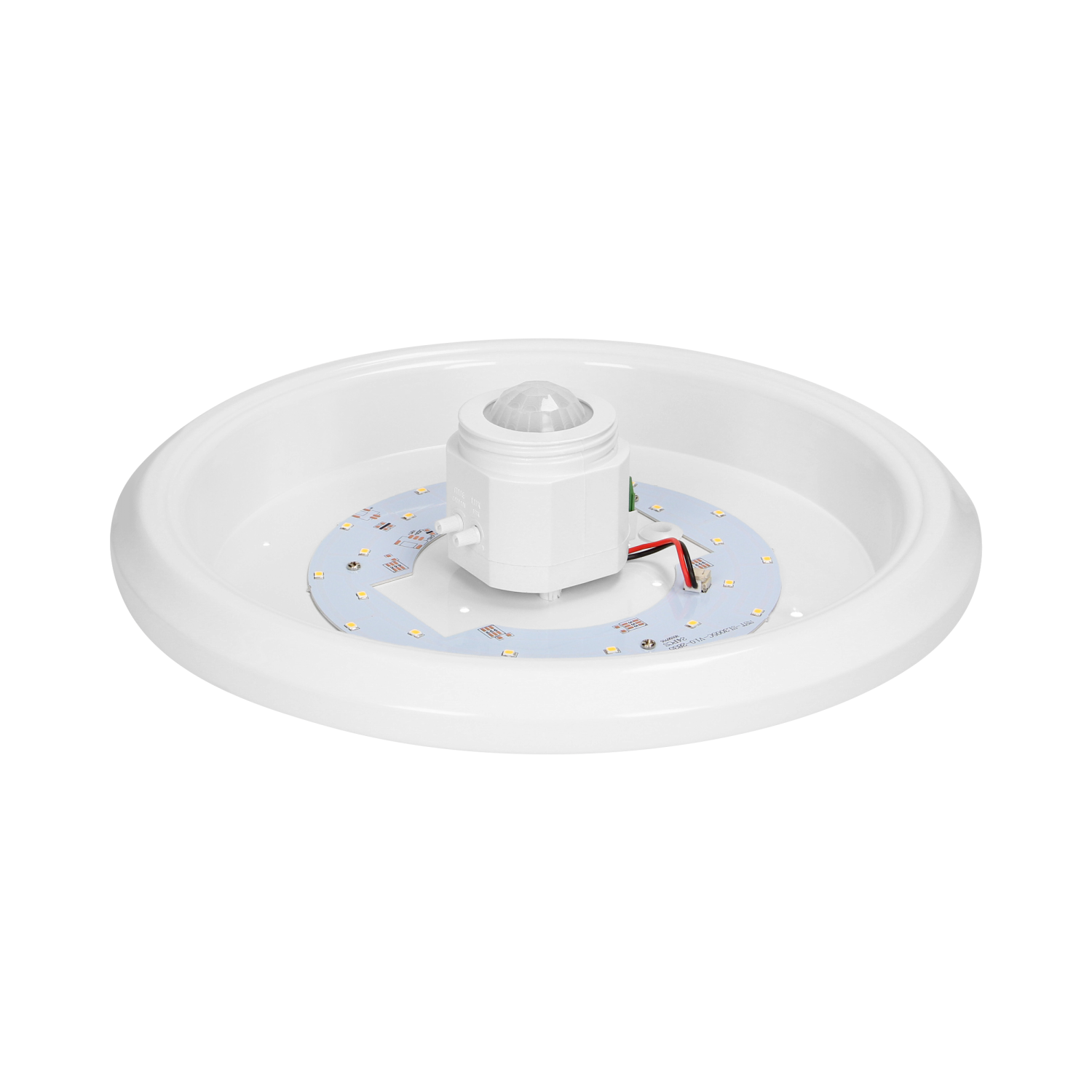

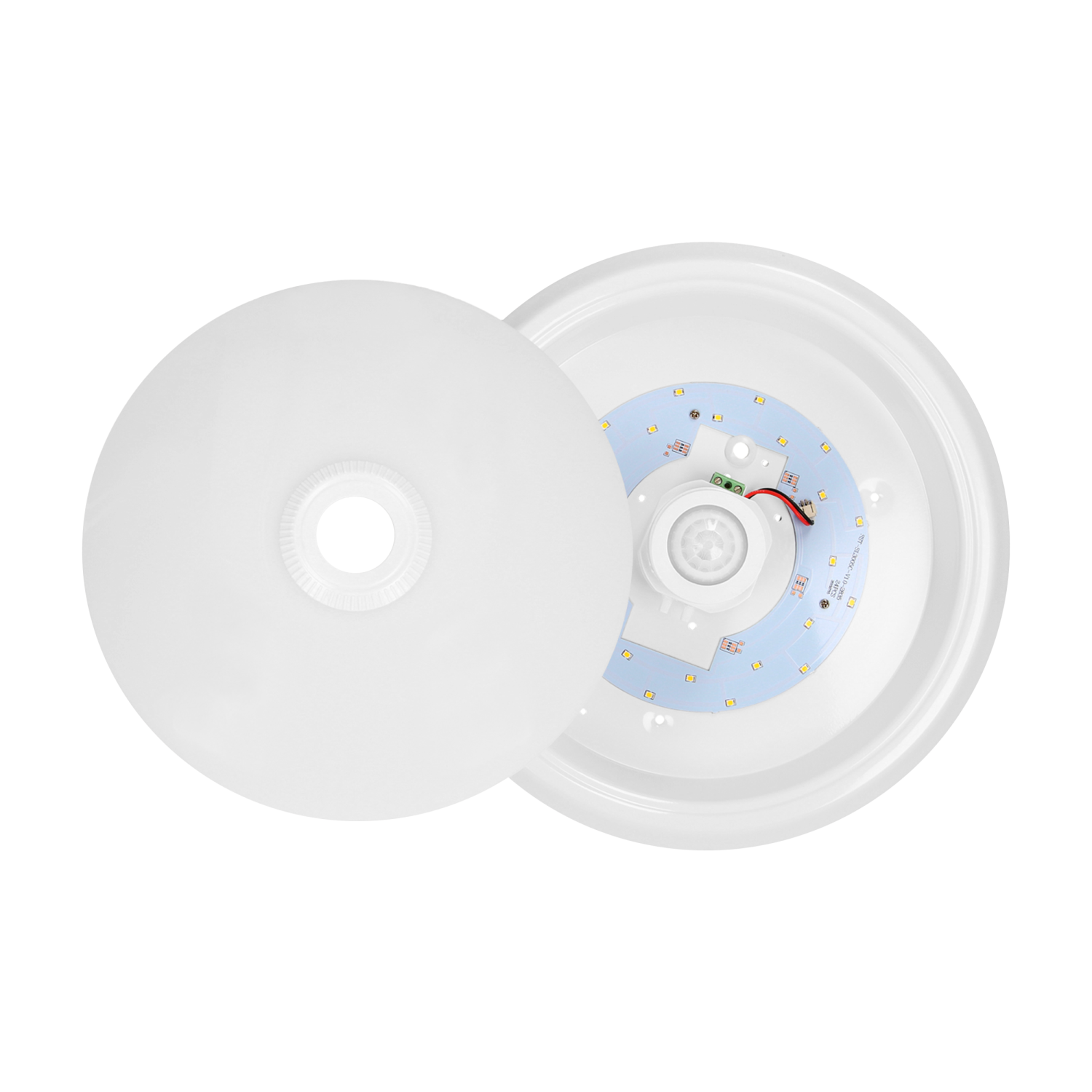

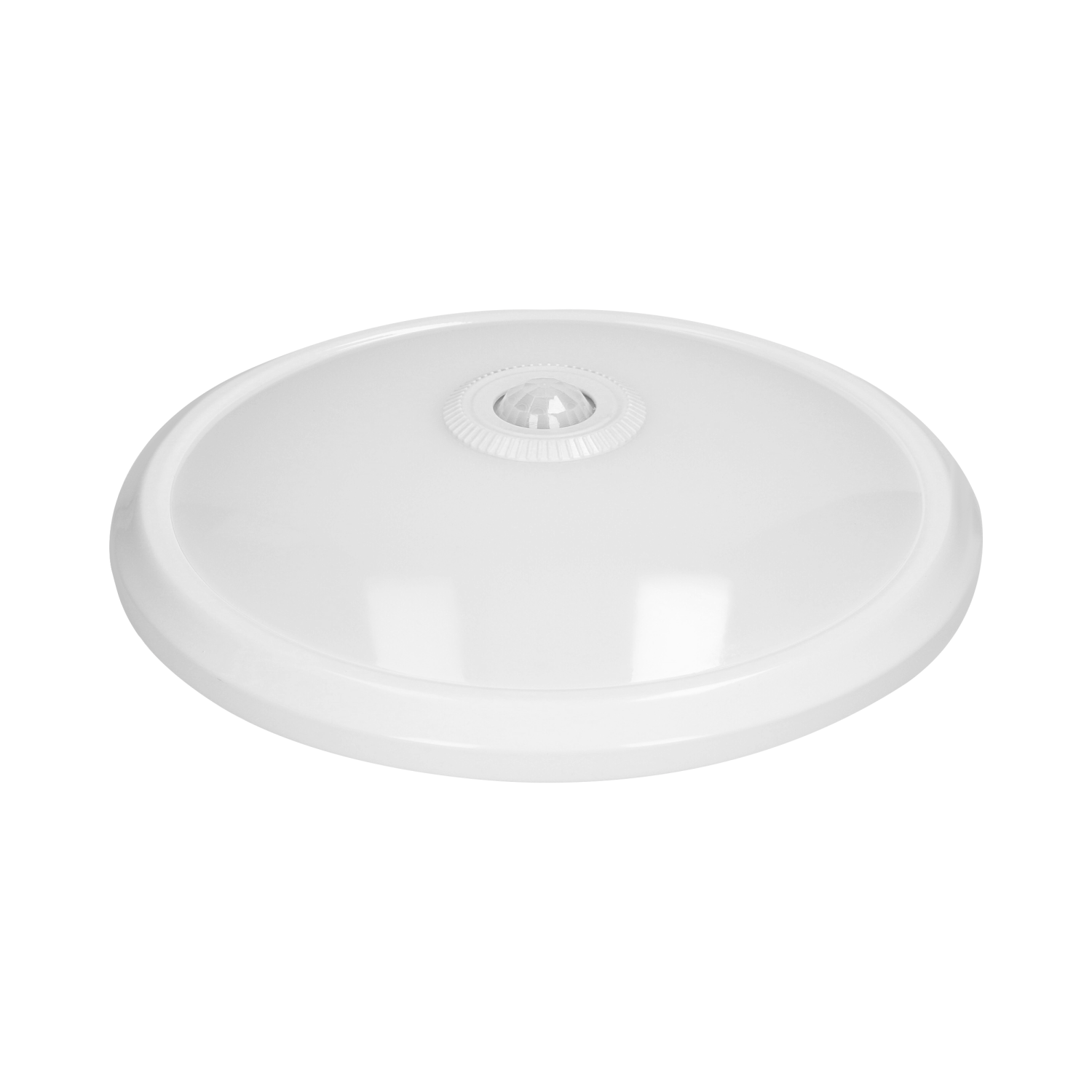

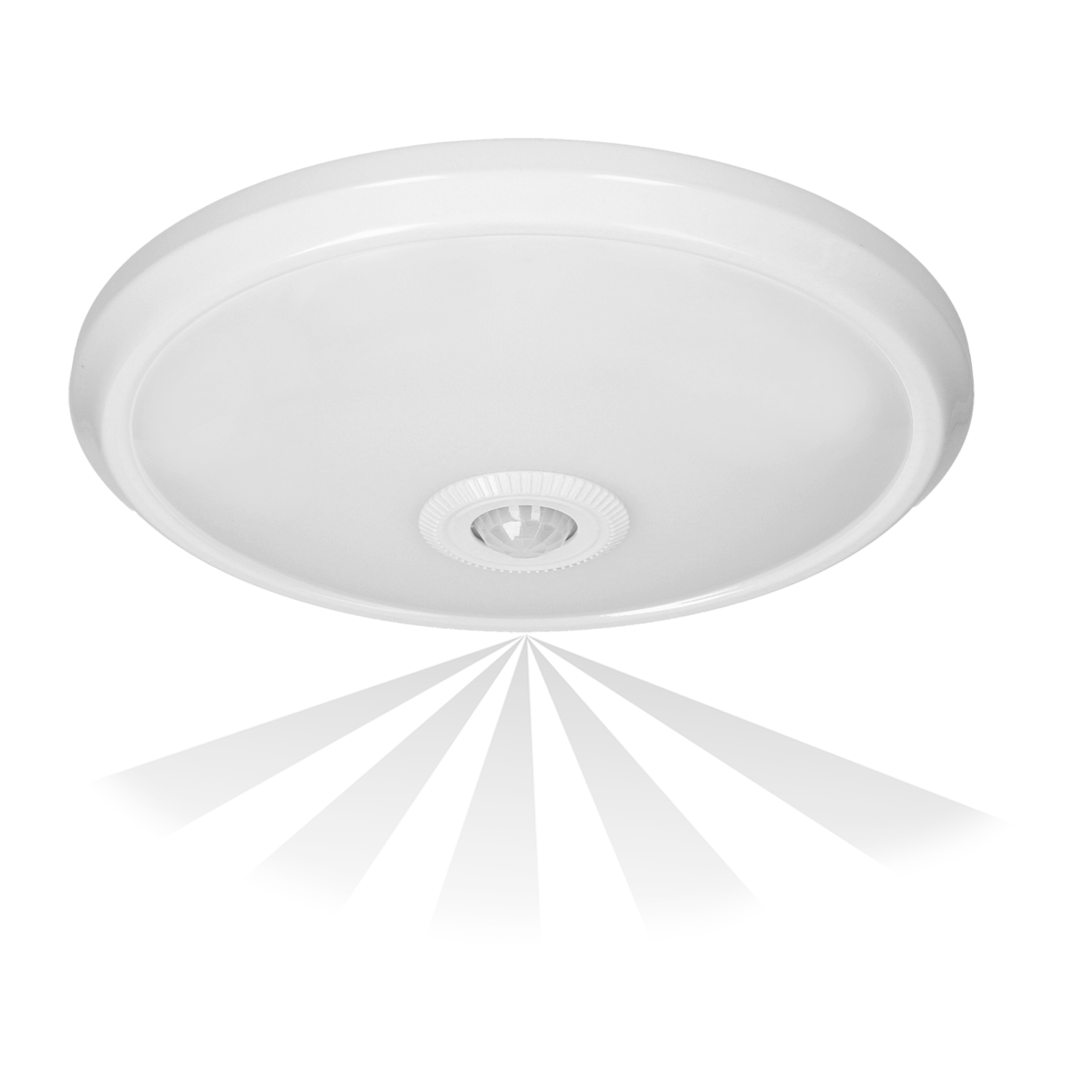

This ceiling luminaire has been designed to automatically illuminate rooms such as: staircases, corridors, basements, garages, warehouses, etc. This lighting fixture is equipped with a PIR motion sensor, which is placed inside and, depending on the settings, it will detect even the smallest movement. Thanks to three potentiometers, the sensor can be set according to the needs, so as to operate exactly when people are present or they are moving in a given area. The settings include: lighting time within the range from 10 seconds to 12 minutes and light intensity. The maximum range of motion detection is 6m. The luminaire uses SMD LEDs, which guarantee high energy efficiency and have a long service life. The presented lamp works with rated power of 12 W and emits light with luminous flux of 800 lm. It shines with a natural white color at a temperature of 4000K. The base of the luminaire is made of a metal alloy, and the lampshade is made of unbreakable polycarbonate in a milky color.
| General information: | |
|---|---|
| Luminous flux: | 800 lm |
| Rated power: | 12 W |
| Light source: | LED SMD |
| Degree of protection (IP): | 20 |
| Colour temperature: | 4000 |
| Nominal voltage: | 230V~, 50Hz |
| Colour: | white |
| Dimensions - depth: | 67 mm |
| Dimensions - width: | 290 mm |
| Dimensions - height: | 290 mm |
| Colour rendering index CRI: | >85 |
| Detection angle: | 360° |
| Material of the lampshade: | polycarbonate |
| Control of the motion sensor: | Yes |
| Type of sensor: | PIR |
| Detection range: | 6 m |
| Adjustable daylight sensor (LUX): | Yes |
| Daylight sensor adjustment range (LUX): | <3—2000lux |
| Adjustable time setting (TIME): | Yes |
| Lighting time adjustment range (TIME): | min: 10 sek. ± 3 sek.; max: 3 min. ± 30 sek. |
| Adjustment of motion detection range (SENS): | No |
