Furniture luminaires

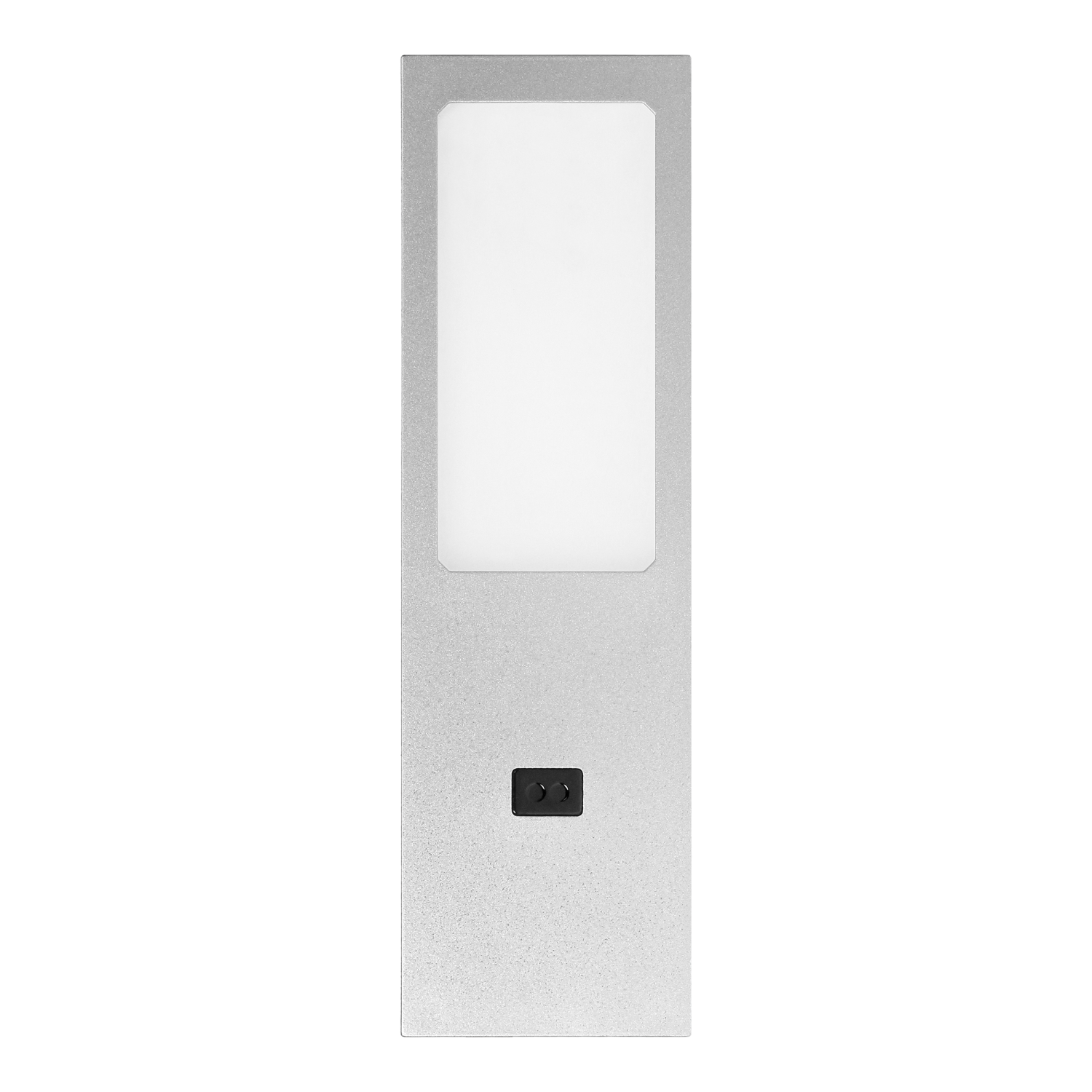

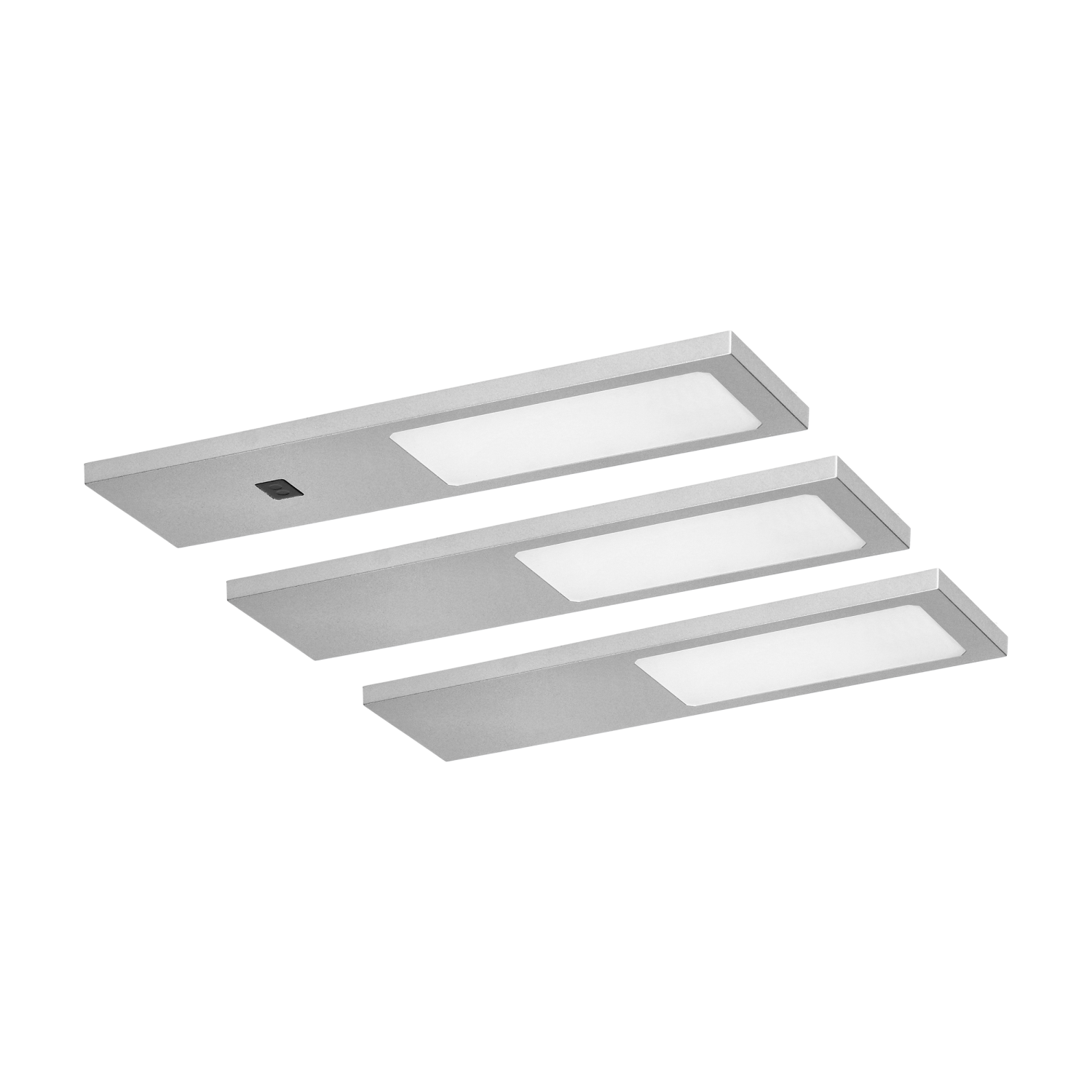

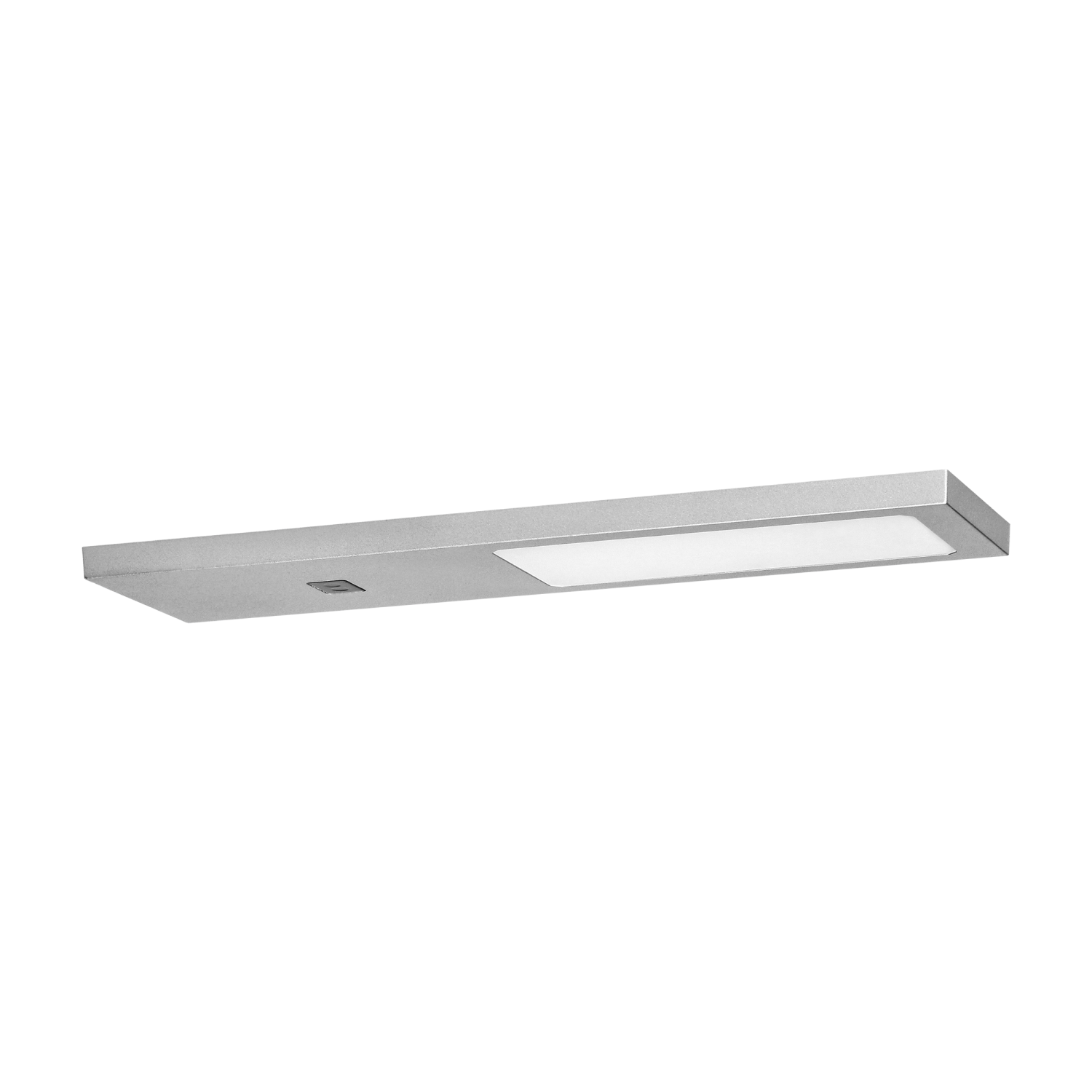

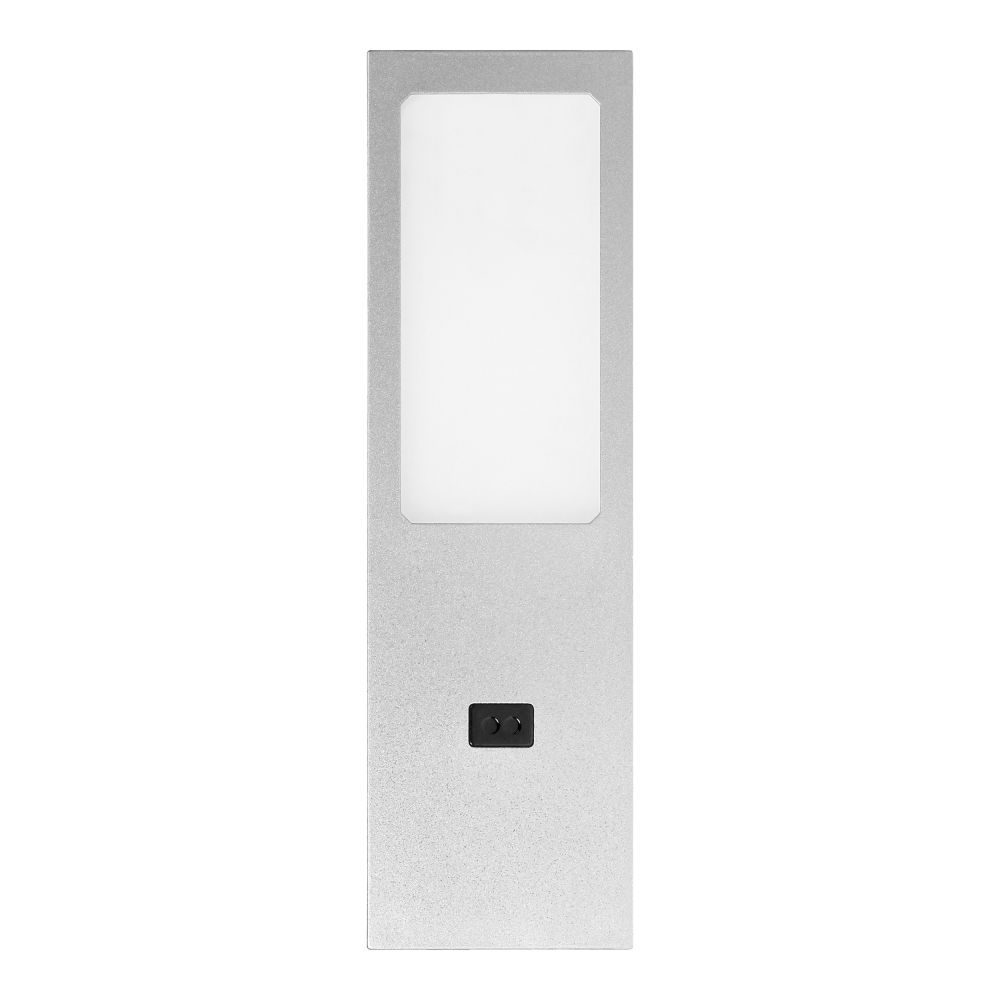

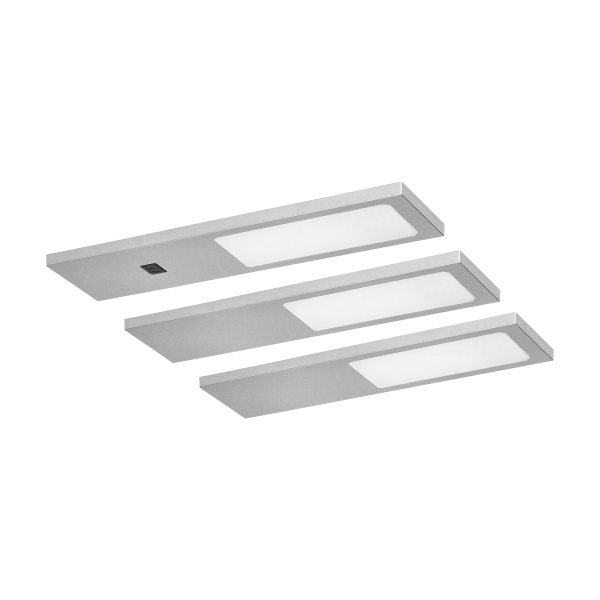

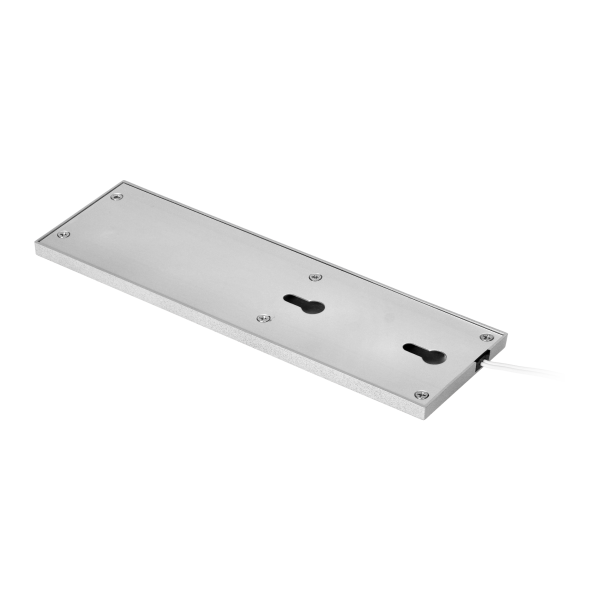

A set of 3 PLANA LED under-cabinet luminaires in grey with 4W and a luminous flux of 240lm each. One of the three luminaires has two functions that control the entire set: a touchless switch, which allows the lighting to be activated without having to turn on each lamp individually, and a function to dim/brighten the light as required by holding your hand under the sensor.

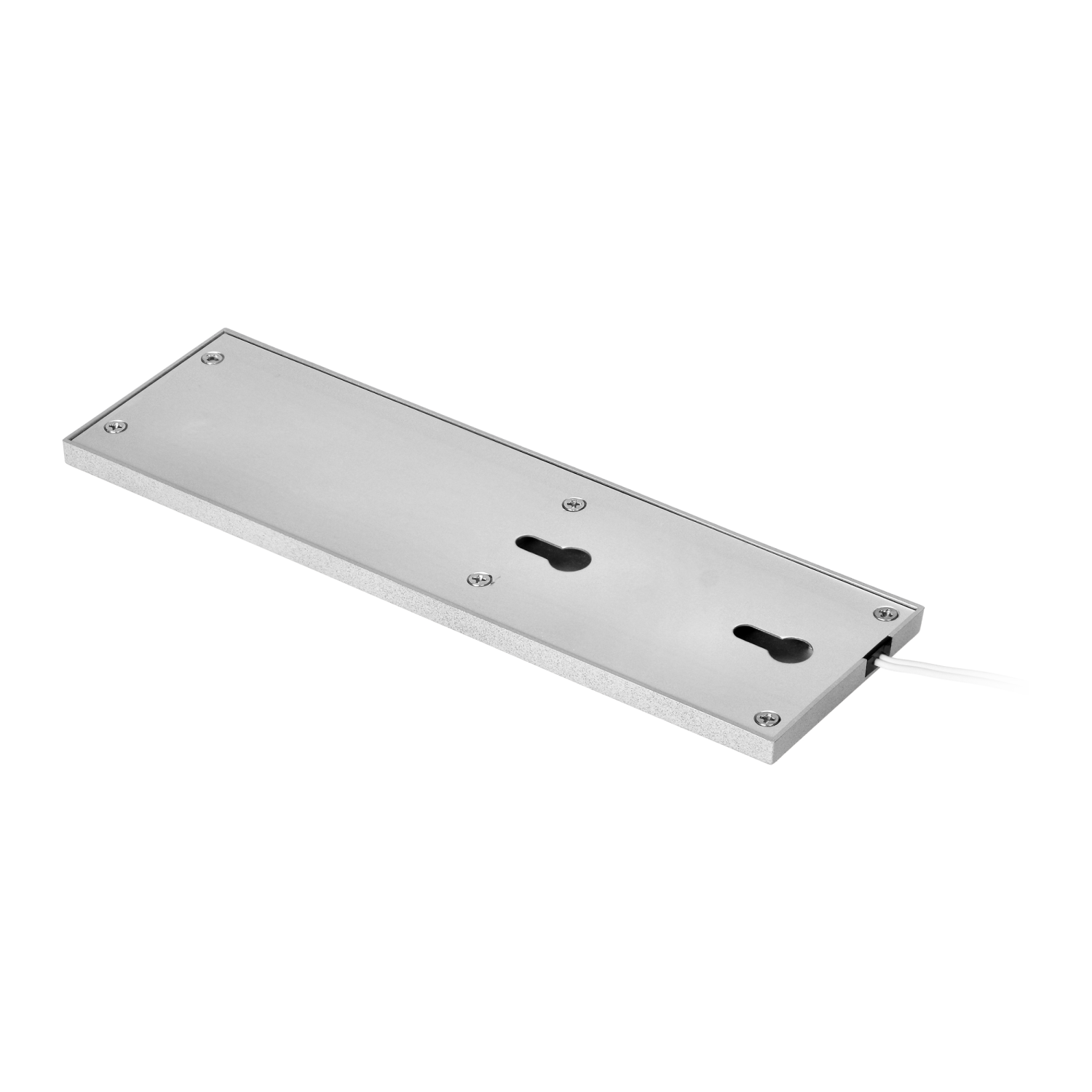

The set has been designed in a universal style. The flat housing of each lamp does not stand out significantly from the furniture under which it is installed, which gives the effect of a tastefully furnished interior. The simplicity of the design of this model will enrich any decor of both residential and commercial space. This type of lighting is designed to be mounted to the bottom surface of a shelf or cabinet.
The set emits light with a pleasant and neutral colour of 4000K.
The set can be extended with additional lights from the same PLANA series.
The power supply unit is included in the set. Luminaires also available in black.
| General information: | |
|---|---|
| Nominal voltage [V]: | 230/12 |
| Lamp type: | LED, niewymienne |
| Suitable for lamp power [W]: | 3x4 |
| Rated luminous flux according to IEC 62722-2-1 [lm]: | 3x240 |
| Luminaire efficacy [lm/W]: | 60 |
| Suitable for number of lamps: | 3 |
| With light source: | tak |
| Colour temperature [K]: | 4000 |
| Beam angle: | Wiązka bardzo szeroka > 80° |
| Rated life time L70/B50 at 25 °C [h]: | 20000 |
| Colour rendering index CRI: | 80-89 |
| Energy efficiency class of the built-in lamp: | G |
| Colour of light: | Neutralny biały |
| Flickering value Pst LM: | <1 |
| Stroboscope effect value SVM: | <0,4 |
| Degree of protection (IP): | IP20 |
| Impact strength: | IK08 |
| Protection class: | II |
| Suitable for surface mounting: | tak |
| Material housing: | Tworzywo sztuczne |
| Colour housing: | Szary |
| Material cover: | Tworzywo sztuczne matowe/satynowe |
| With movement sensor: | tak |
| Sensor type: | IR |
| Detection range: | 3cm |
| Width [mm]: | 50 |
| Height/depth [mm]: | 6.8 |
| Length [mm]: | 168 |
| Voltage type: | AC/DC |
| Exchangeable control gear: | tak |
| Max. system power: | 12 |
| Type of wiring: | Końcowe |
| Connection type: | Wtyczka |
| Other features: | Funkcja ściemniania |
