Furniture luminaires

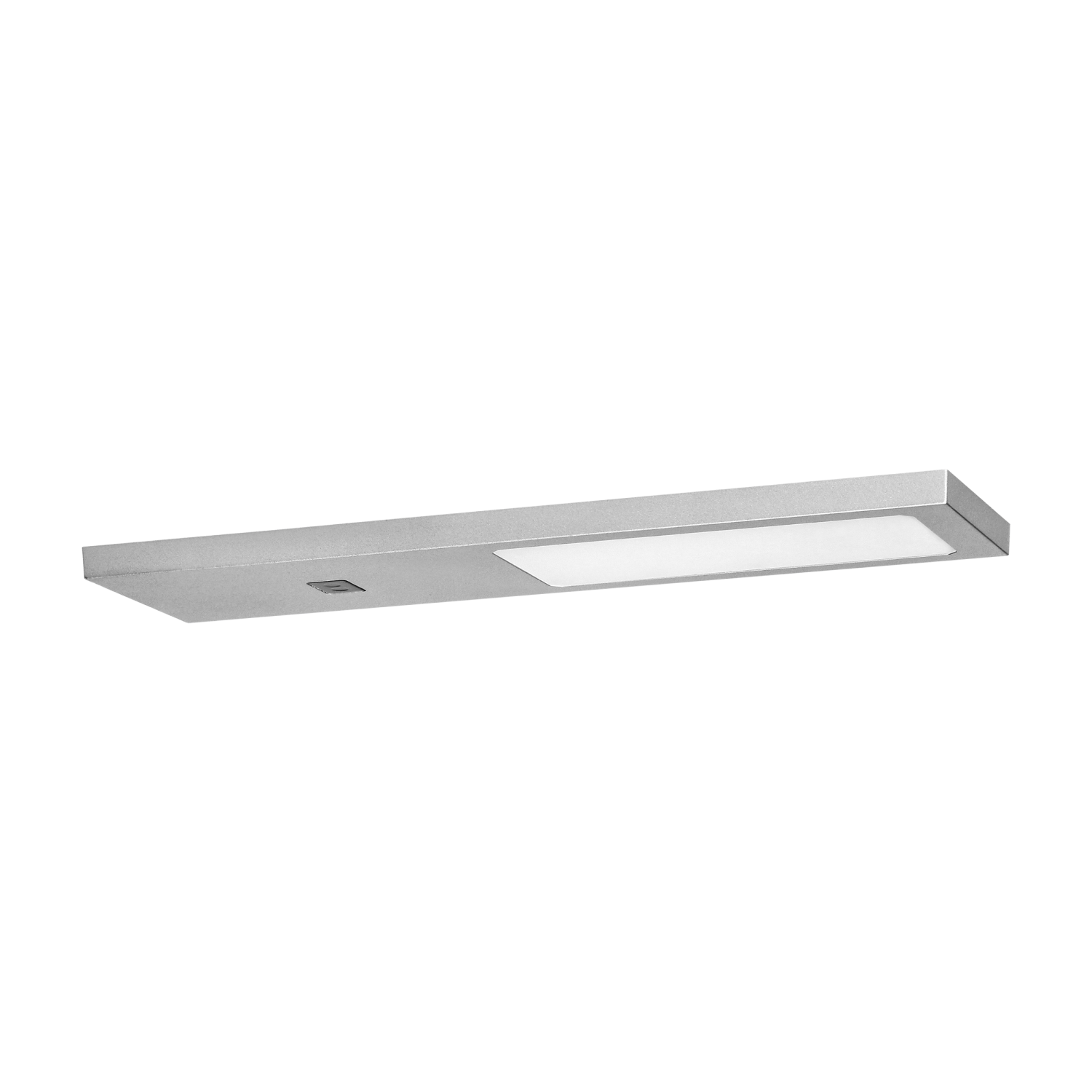

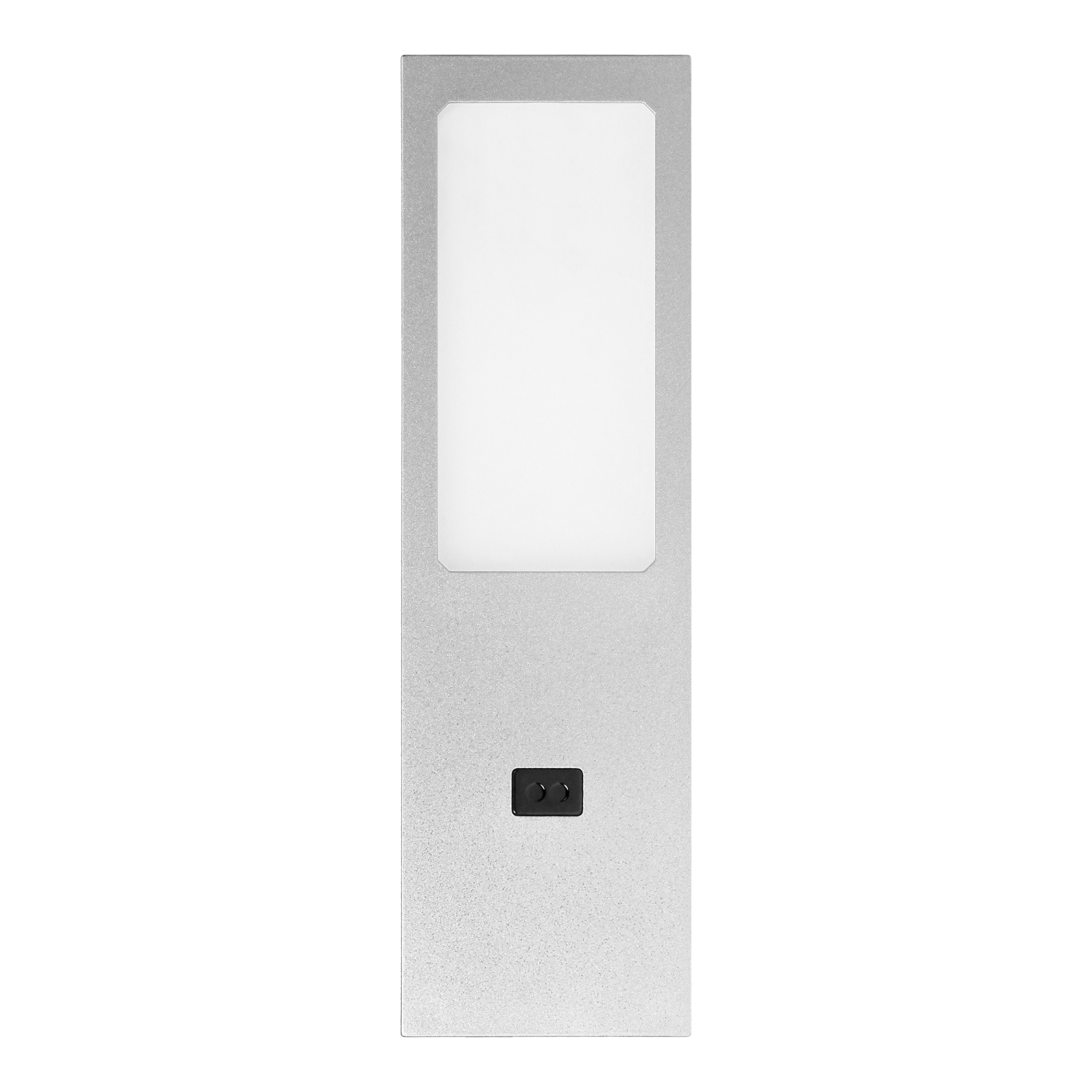

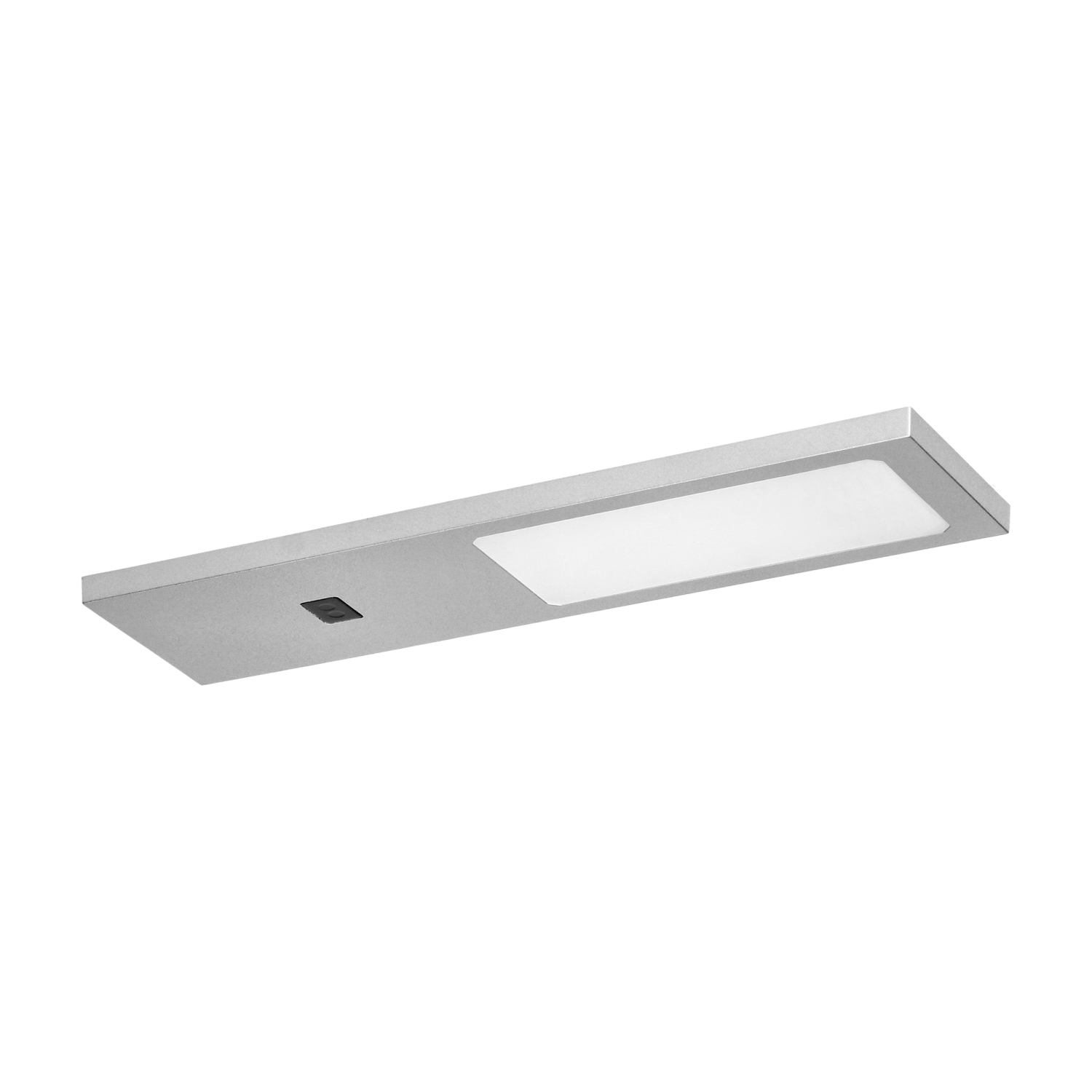

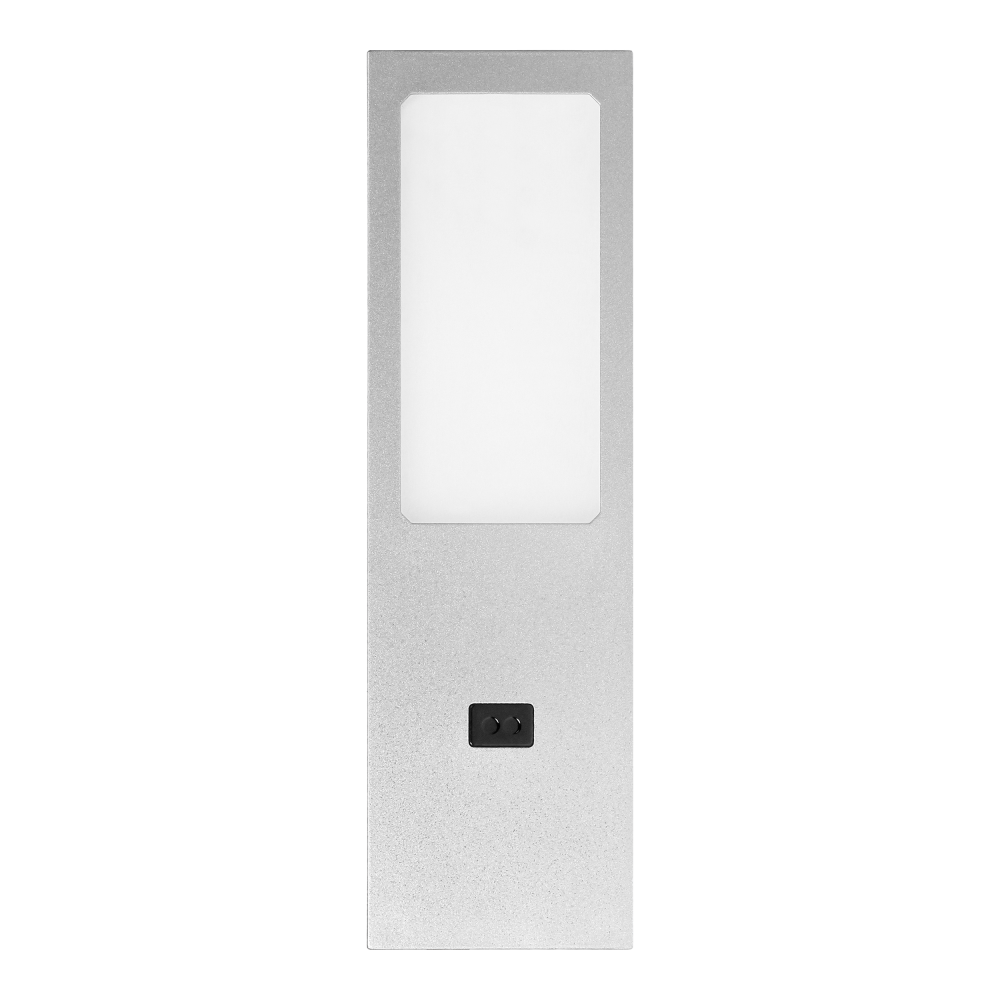

A single PLANA LED under-cabinet luminaire in grey with 4W and a luminous flux of 240lm with a touchless switch, which allows the light to be activated without touching the luminaire. This solution will work well, for example, when carrying out dirty tasks in the kitchen.
The model is equipped with a dimming/brightening light function. Simply hold your hand under the sensor and change the intensity as required.
The luminaire emits light with a pleasant and neutral colour of 4000K. The IP20 protection level allows the lamp to be mounted indoors.

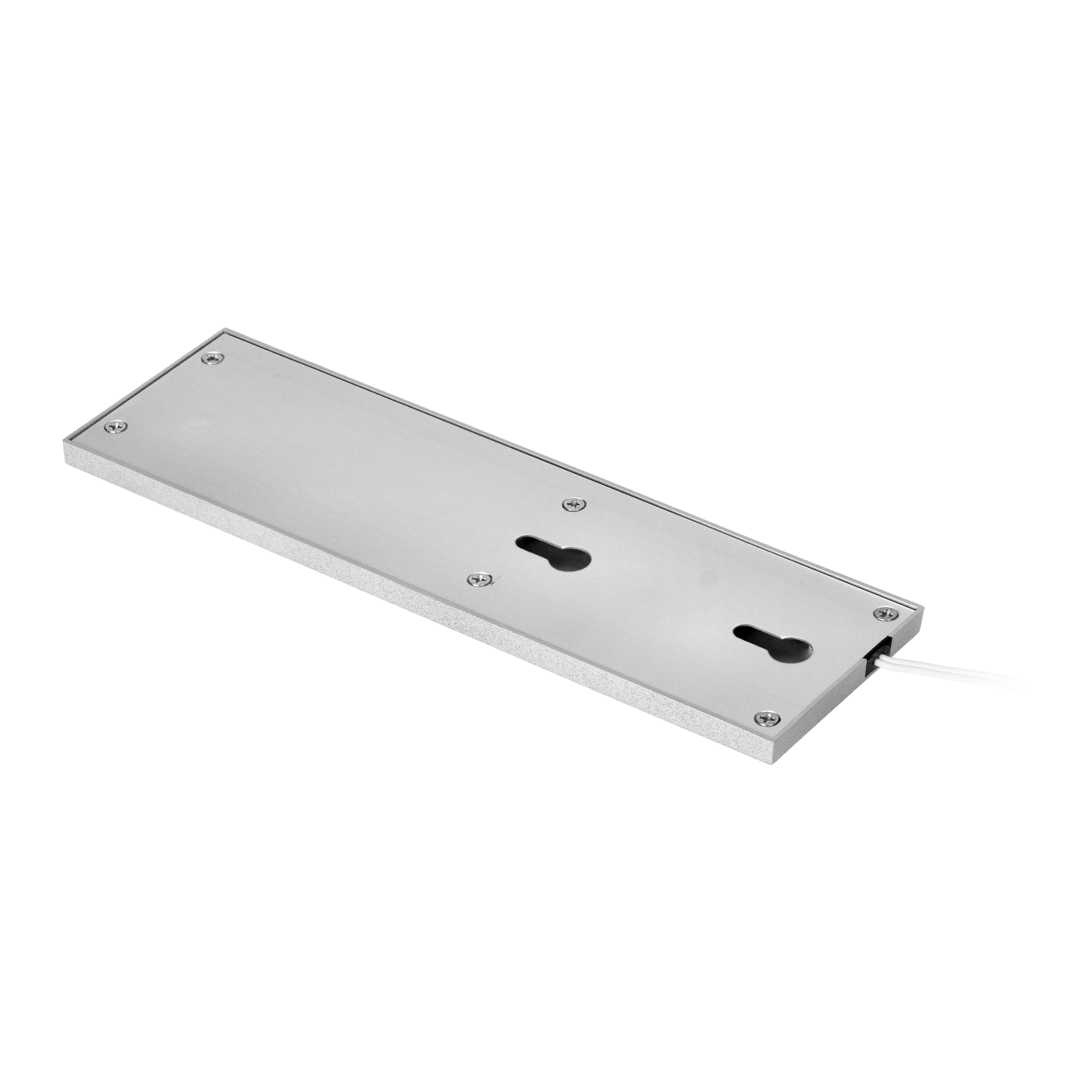

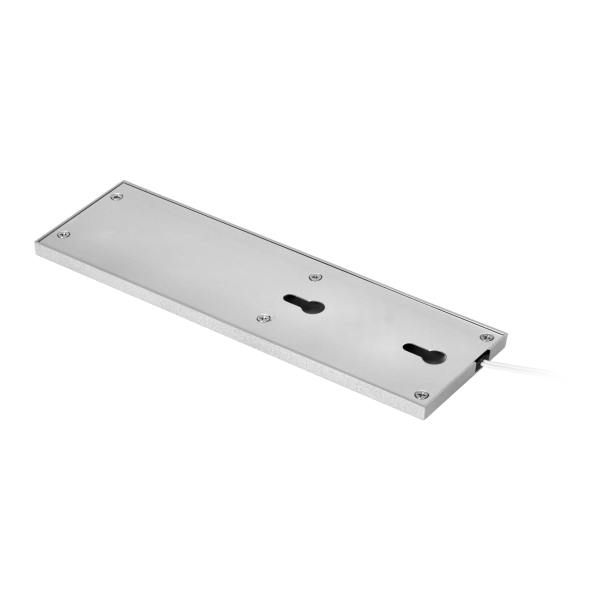

PLANA models are designed with simplicity for any interior design, whether residential or commercial. They are characterised by a flat housing that protrudes slightly from the furniture, giving the effect of a tastefully decorated interior. This type of light is designed to be mounted to the bottom surface of a shelf or cabinet.
The luminaires have a single through-wiring with a self-locking connector.
A single lamp can be used as an extension to the set. The series includes single lights without switch, single lights with switch and a set of 3 (2x without switch, 1x with switch).
The luminaire is also available in black.
| General information: | |
|---|---|
| Nominal voltage [V]: | 12 |
| Lamp type: | LED, niewymienne |
| Suitable for lamp power [W]: | 4 |
| Rated luminous flux according to IEC 62722-2-1 [lm]: | 240 |
| Luminaire efficacy [lm/W]: | 60 |
| With light source: | tak |
| Colour temperature [K]: | 4000 |
| Max. Power [W]: | 4 |
| Beam angle: | Wiązka bardzo szeroka > 80° |
| Rated life time L70/B50 at 25 °C [h]: | 20000 |
| Colour rendering index CRI: | 80-89 |
| Energy efficiency class of the built-in lamp: | G |
| Colour of light: | Neutralny biały |
| Flickering value Pst LM: | <1 |
| Stroboscope effect value SVM: | <0,4 |
| Degree of protection (IP): | IP20 |
| Impact strength: | IK08 |
| Protection class: | II |
| Suitable for surface mounting: | tak |
| Material housing: | Tworzywo sztuczne |
| Colour housing: | Szary |
| Material cover: | Tworzywo sztuczne matowe/satynowe |
| With movement sensor: | tak |
| Sensor type: | IR |
| Detection range: | 3cm |
| Width [mm]: | 50 |
| Height/depth [mm]: | 6.8 |
| Length [mm]: | 168 |
| Voltage type: | DC |
| Exchangeable control gear: | tak |
| Type of wiring: | Z okablowaniem przelotowym |
| Connection type: | Wtykowe samozaciskowe |
| Other features: | Funkcja ściemniania |
