Furniture luminaires

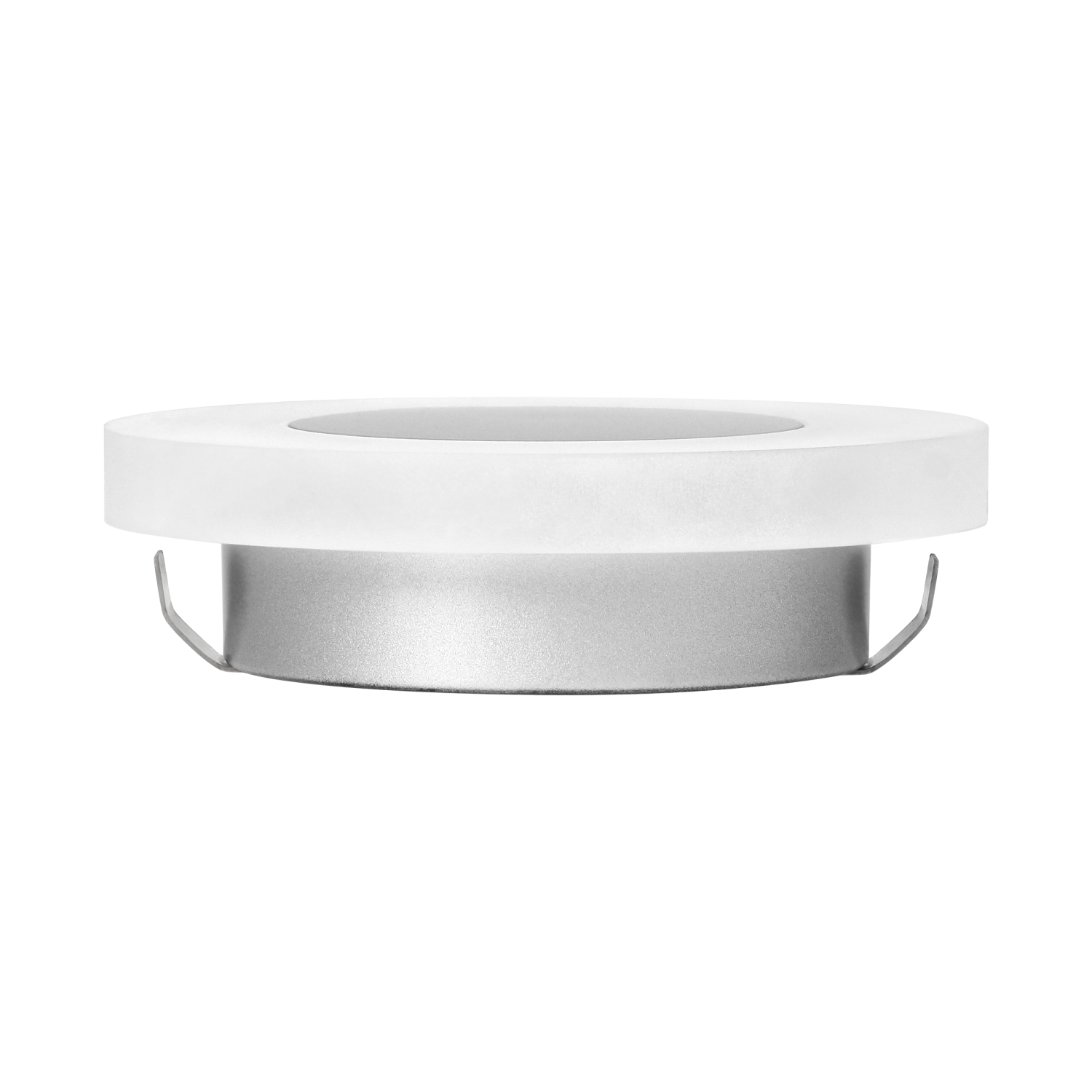

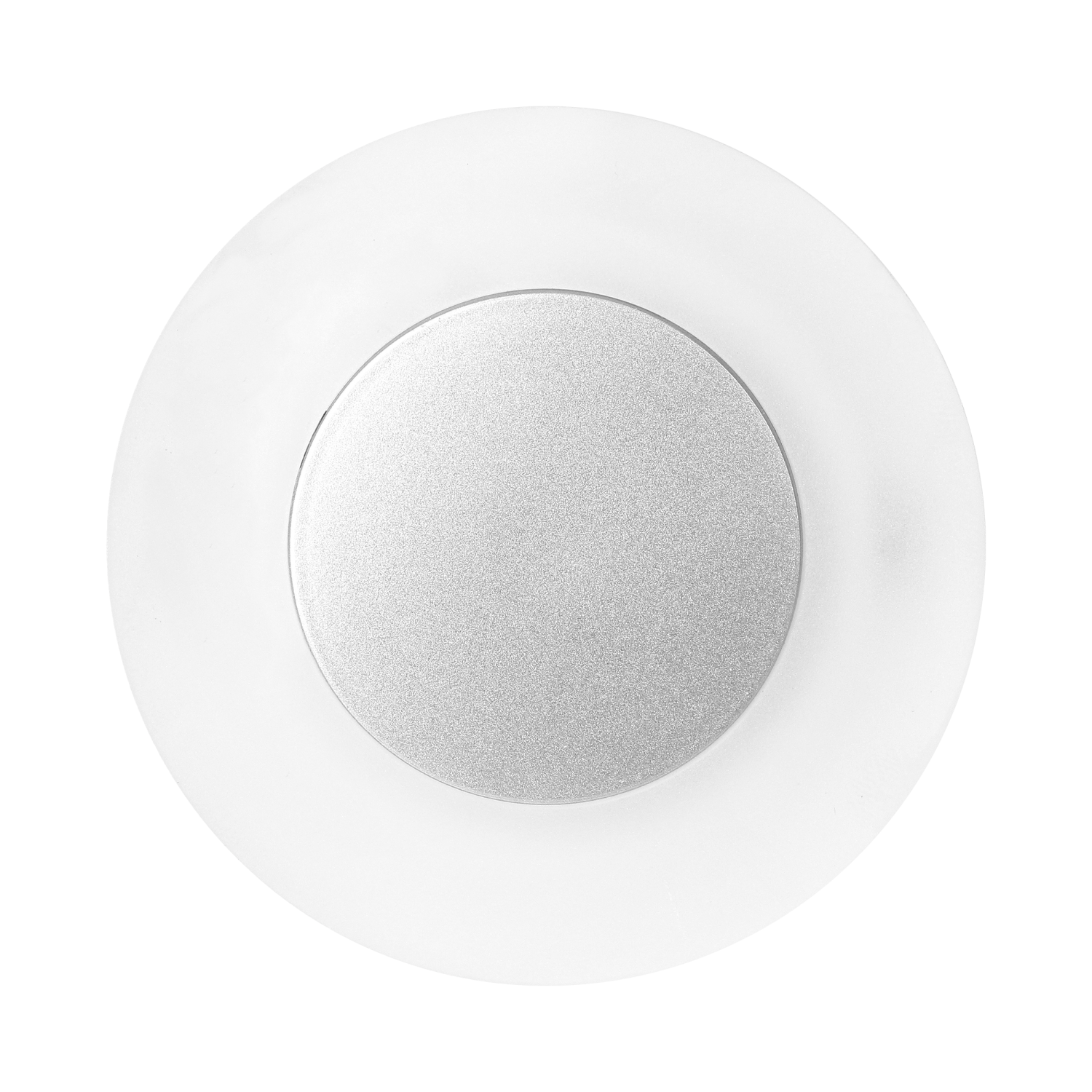

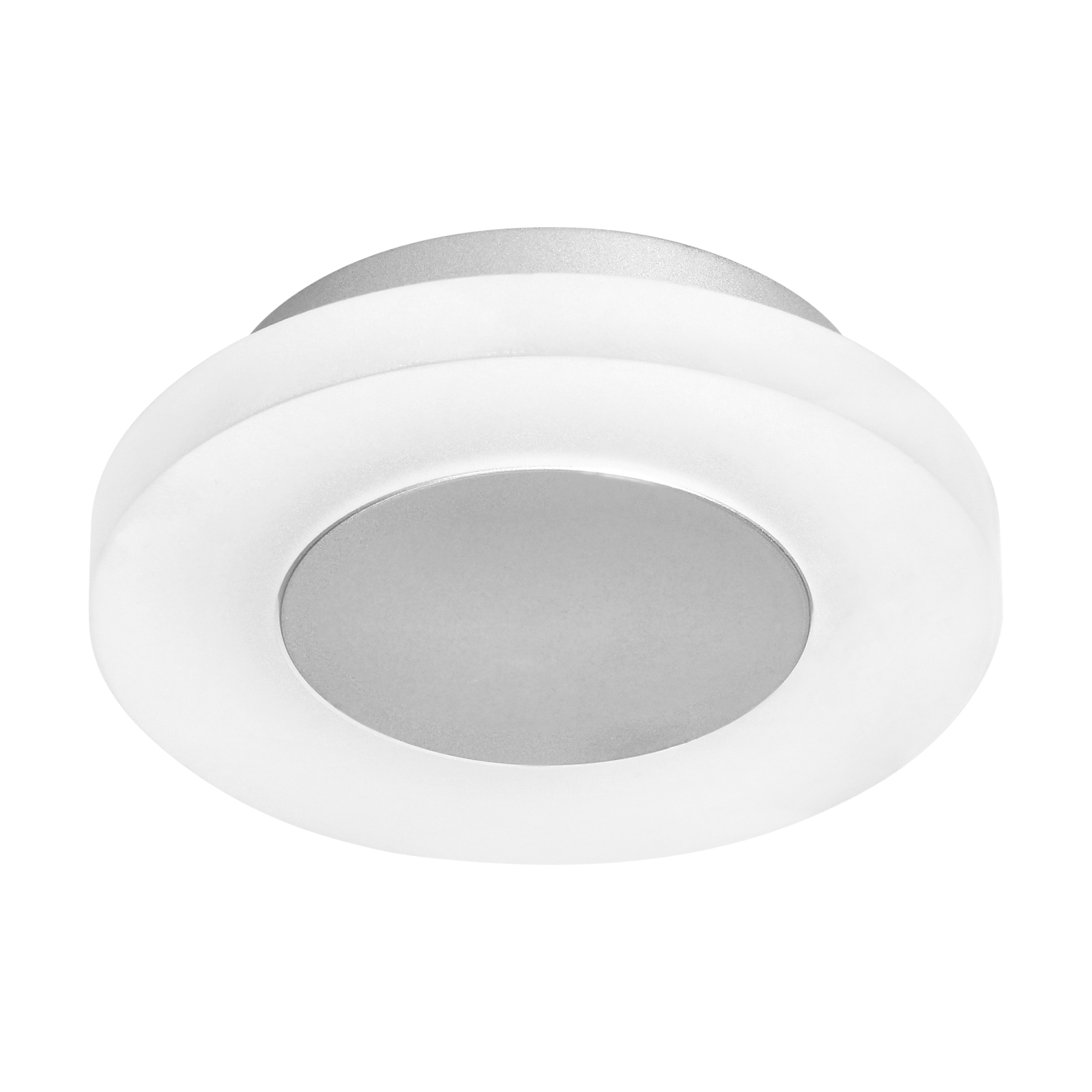

Single OCULUS under-cabinet lamp, with 2W LED power and 90lm luminous flux. The lamp emits light with a pleasant and neutral colour of 4000K. The lamp housing is made of plastic and the diffuser material is matt/satin plastic. The diameter of the entire luminaire is 68 mm. The IP20 protection level allows the lamp to be installed indoors.
The simple, non-complicated design means that the lamp will fit in with any interior design and style of furniture in both residential and commercial spaces. It is perfect as countertop, cabinet or display case lighting. The combination of several such lamps will certainly complement the interior design.
This type of luminaire is designed to be mounted, for example, to the underside of a shelf or cabinet.

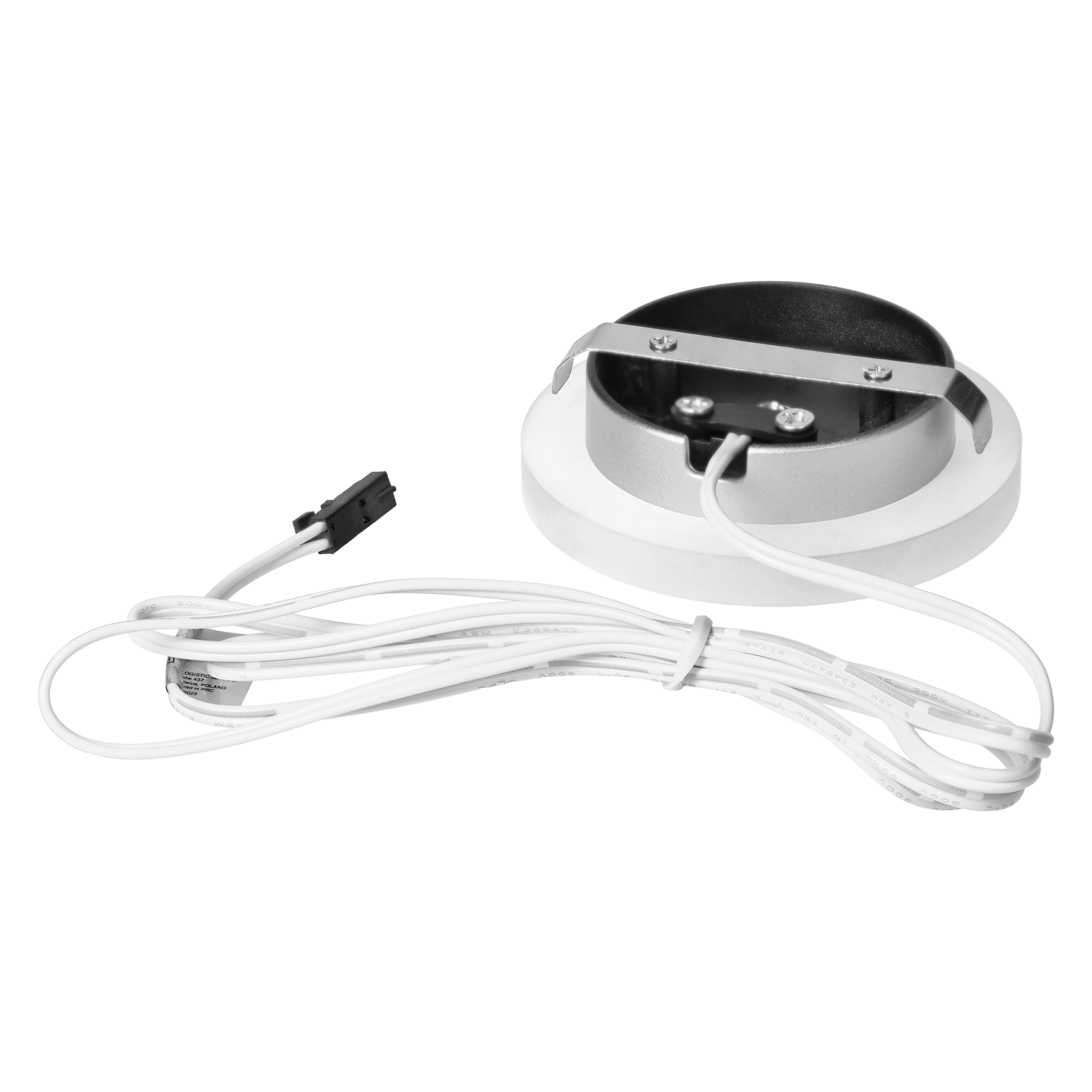

The lamp has through wiring (no direct plug into a contact).
The product is available in grey.
| General information: | |
|---|---|
| Nominal voltage [V]: | 12 |
| Lamp type: | LED, niewymienne |
| Suitable for lamp power [W]: | 2 |
| Rated luminous flux according to IEC 62722-2-1 [lm]: | 90 |
| Luminaire efficacy [lm/W]: | 45 |
| With light source: | tak |
| Colour temperature [K]: | 4000 |
| Max. Power [W]: | 2 |
| Beam angle: | Wiązka bardzo szeroka > 80° |
| Rated life time L70/B50 at 25 °C [h]: | 20000 |
| Colour rendering index CRI: | 80-89 |
| Energy efficiency class of the built-in lamp: | G |
| Colour of light: | Neutralny biały |
| Flickering value Pst LM: | <1 |
| Stroboscope effect value SVM: | <0,4 |
| Degree of protection (IP): | IP20 |
| Impact strength: | IK08 |
| Protection class: | II |
| Suitable for built-in mounting: | tak |
| Material housing: | Tworzywo sztuczne |
| Colour housing: | Szary |
| Material cover: | Tworzywo sztuczne matowe/satynowe |
| Height/depth [mm]: | 19 |
| Outer diameter [mm]: | 68 |
| Built-in height/depth [mm]: | 11.5 |
| Built-in diameter [mm]: | 58 |
| Voltage type: | DC |
| Exchangeable control gear: | tak |
| Type of wiring: | Z okablowaniem przelotowym |
| Connection type: | Wtykowe samozaciskowe |
