Batten luminaires

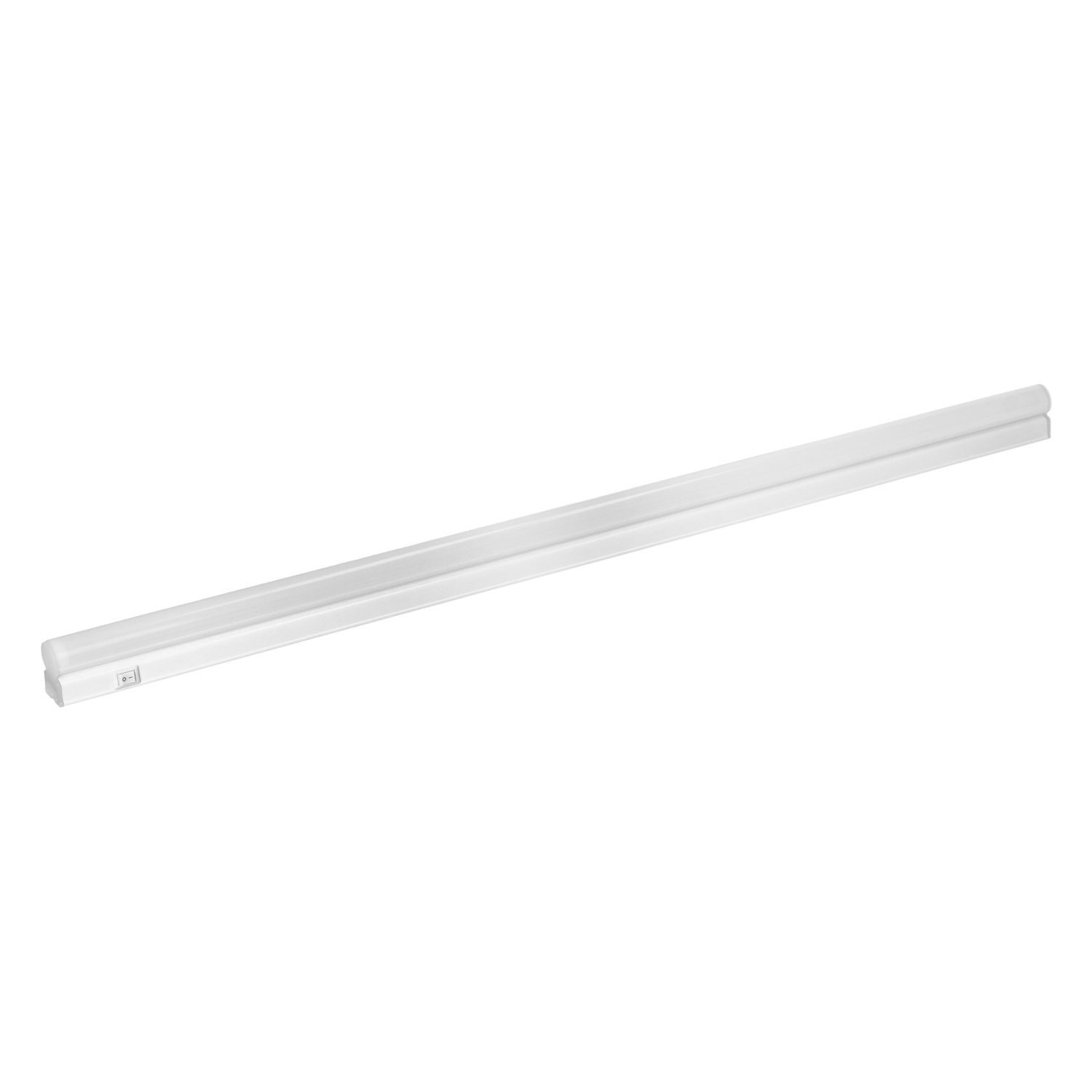

ASTAR LED 12W under-cabinet linear light for surface mounting. This is a practical and modern solution that gives the effect of accurately illuminating the surfaces of countertops, desks and furniture. It can also be used to illuminate a display cabinet or wardrobe. Thanks to its classic housing, the luminaire will be suitable for any residential or office area.
The linear luminaire features LEDs with a pleasant neutral colour of 4000K, a supply voltage of 230V and a luminous flux of 1080lm. The use of this type of lighting is economical, with a high luminous efficiency at the same time, and the SMD LEDs ensure a long service life.

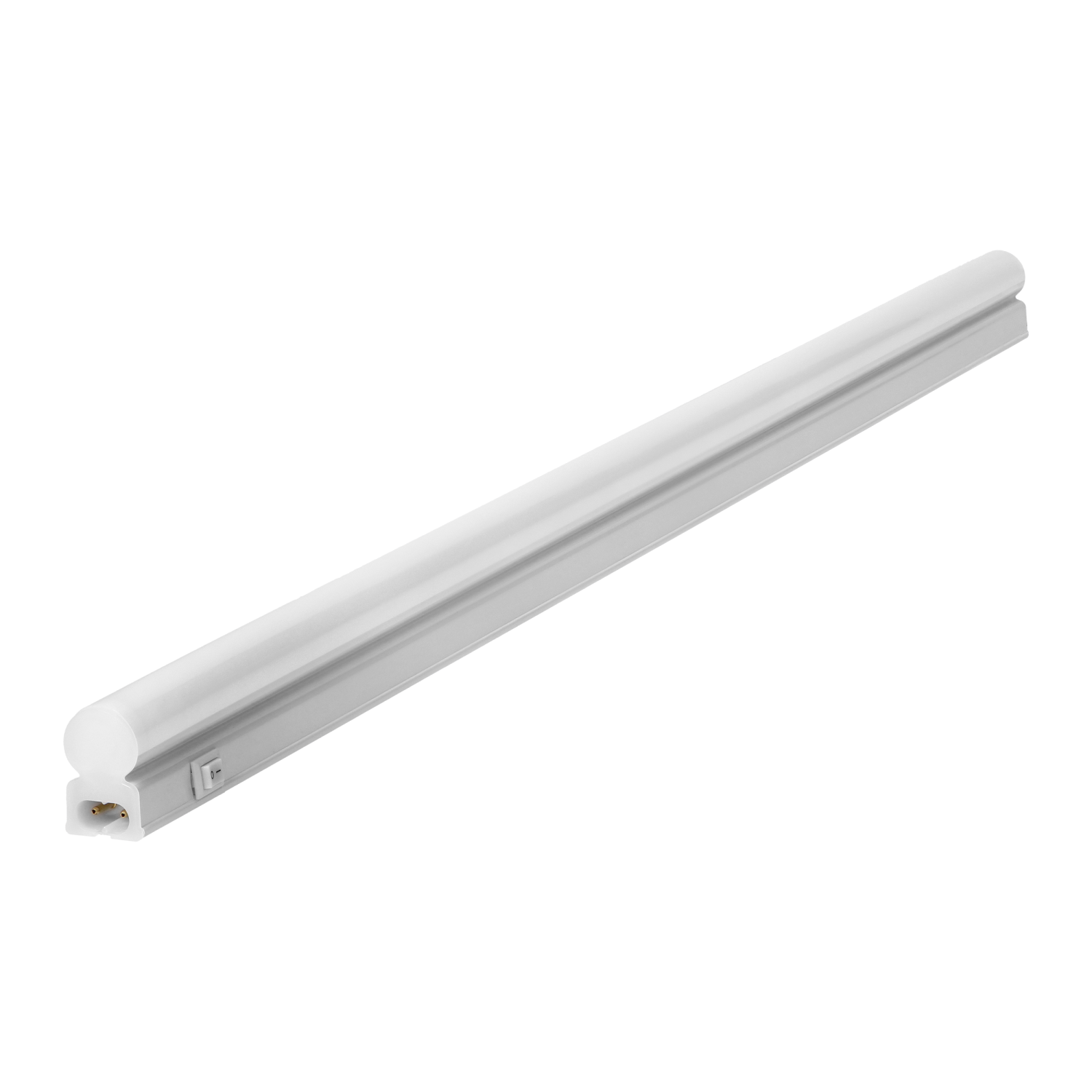

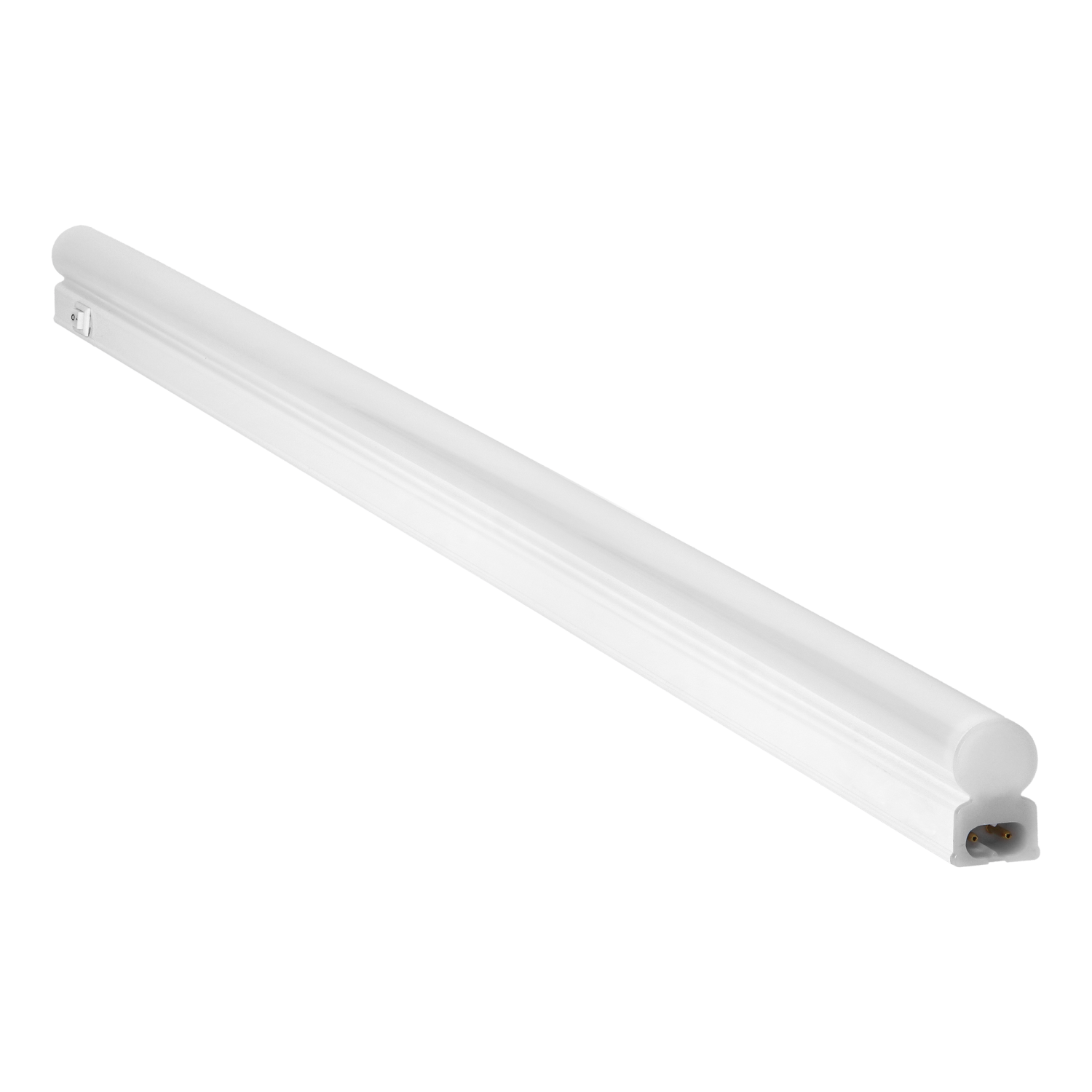

The model presented has dimensions of 870x22x32mm. Equipped with a through-connector system, it makes it possible to combine several luminaires into a single light line. Luminaire cable available in offer (not included). Each luminaire has an individual ON/OFF switch, socket and 2-pin plug.
The luminaire is made of plastic, white color, with a protection level of IP20 - suitable for indoor installation in dry areas.
The ASTAR product series is available in several power versions and also with a cable included.
| General information: | |
|---|---|
| Nominal voltage [V]: | 230 |
| Lamp type: | LED, niewymienne |
| Suitable for lamp power [W]: | 12 |
| Rated luminous flux according to IEC 62722-2-1 [lm]: | 1080 |
| Luminaire efficacy [lm/W]: | 90 |
| With light source: | tak |
| Colour temperature [K]: | 4000 |
| Rated life time L70/B50 at 25 °C [h]: | 15000 |
| Colour rendering index CRI: | 80-89 |
| Energy efficiency class of the built-in lamp: | F |
| Colour of light: | Neutralny biały |
| Power factor: | 0.5 |
| Degree of protection (IP): | IP20 |
| Protection class: | II |
| Montage: | natynkowy |
| Material: | Tworzywo sztuczne |
| Colour housing: | Biały |
| Width [mm]: | 22 |
| Height/depth [mm]: | 32 |
| Length [mm]: | 870 |
| Voltage type: | AC |
| Exchangeable control gear: | tak |
| With switch: | tak |
| The switch type: | kołyskowy |
| Connection type: | Wtyk 2-pinowy |
